Replacing Instrument and Display Illumination Light Bulb

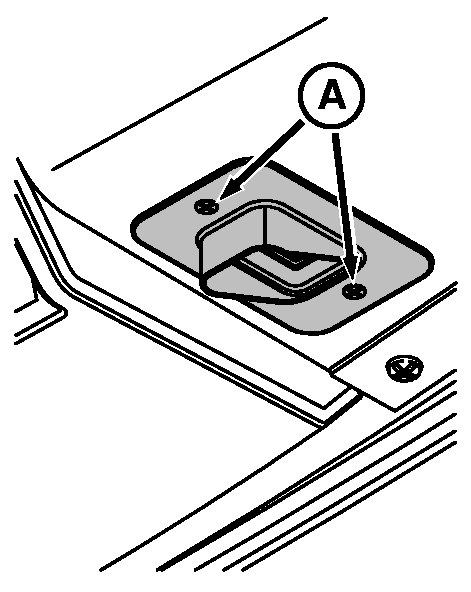

1. Remove screws (A) and light assembly.

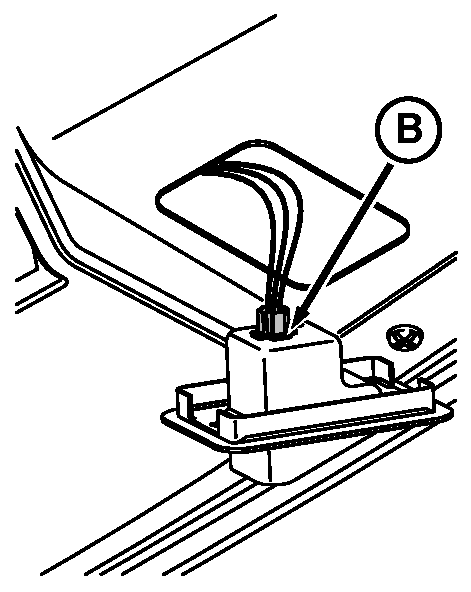

2. Rotate retainer (B) counterclockwise approximately 1/4 turn and remove.

3. Pull out light bulb.

4. Install new bulb in reverse order of removal.


A-Screws
B-Light Bulb Retainer

RXA0068512
RXA0068513

OUMX005,000165D -19-22MAR05-1/1
