Connecting/Disconnecting Hydraulic Hoses-Mid-Mount Valve or Front of Tractor (If Equipped)

causym CAUTION: Press down on lock symbol (transport lock) switch (A) before attaching or detaching hydraulic hoses to prevent equipment movement and possible personal injury. Mechanical single lever control, close latch to prevent accidental movement of lever.

IMPORTANT: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly.

Be sure hose ends are clean prior to use to minimize hydraulic system contamination.

NOTE: Hydraulic receptacles at front of tractor and/or at mid-mount valve (if equipped) are operated by a electrohydraulic multi-function control lever or mechanical single lever control. Optional equipment available: Loader or front hitch with hydraulic outlets.

1. Press down on lock symbol (A). For mechanical single lever control, close latch.

2. Clean dust caps/plugs.

3. Pull off cap/plug to expose receptacles.

4. Push hoses firmly into receptacles.

  • If equipped with loader, see procedure in loader Operator's Manual to identify correct hose connections.
RXA0068331
RXA0068332

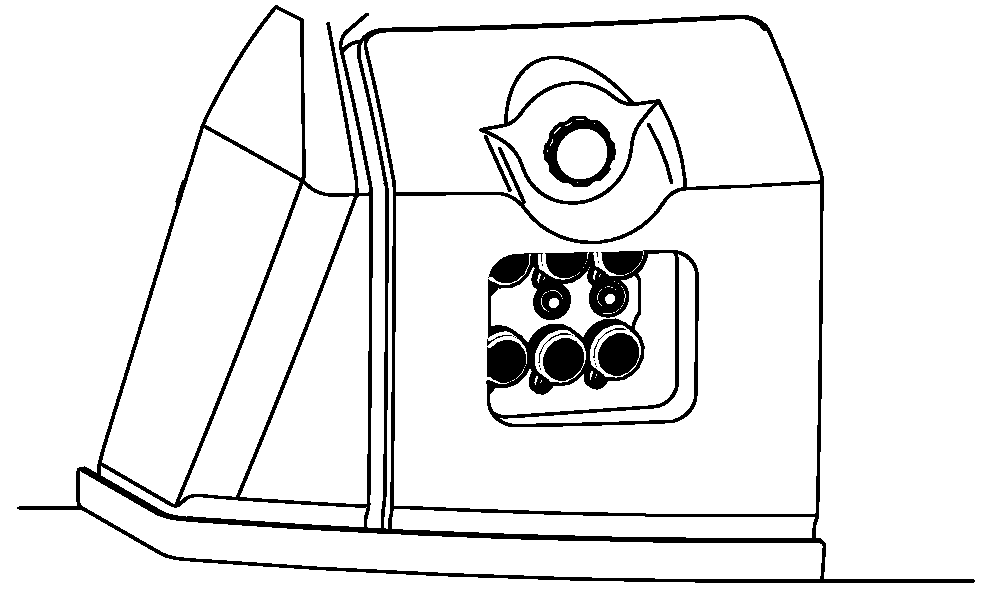

Mid-Mount Receptacles

RXA0068333

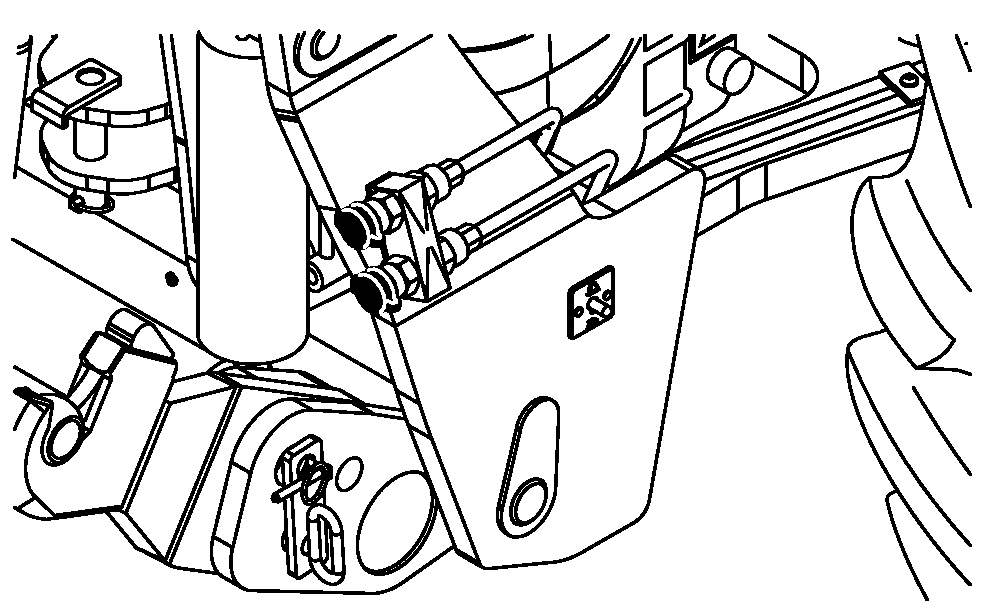

Front Hitch Receptacles

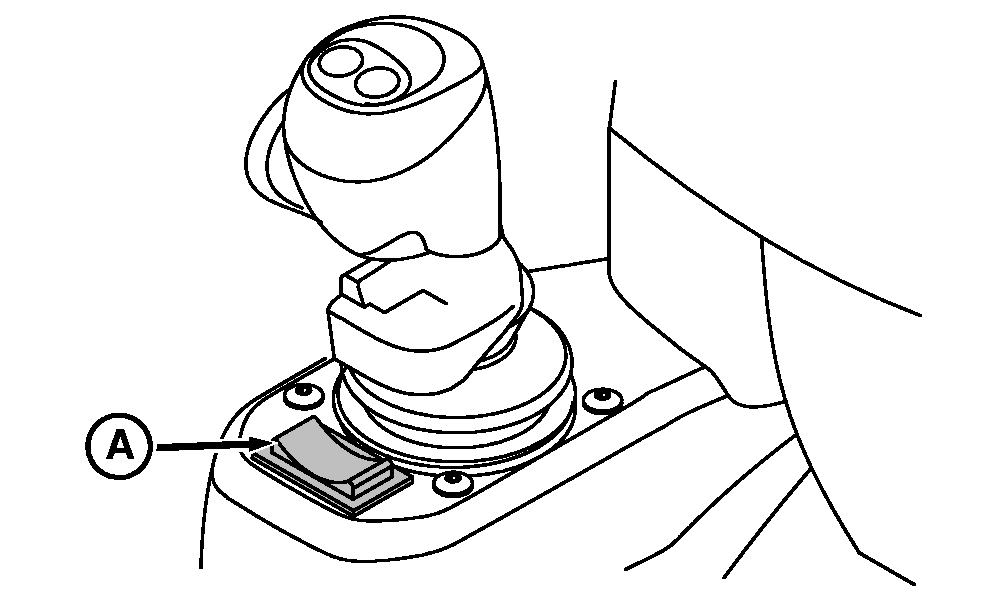

A-Transport Lock Switch
