Using External Rear PTO Switch (If Equipped)

Rear PTO can be operated from outside of cab.

1. Press preselector switch (A). Rear PTO indicator will light on corner post display.

2. Push down and forward on PTO switch (B). A continuous audible warning will sound and hazard warning lights will flash. (PTO has not started yet.)

3. Press and hold external PTO switch (C). Rear PTO will start slowly. Hazard warning lights will go out and turn signal light (D) will remain on.

  • Press and hold switch for at least 4 seconds:
    • Turn signal light turns off
    • PTO continues to operate
  • Release switch within 4 seconds:
    • PTO will slowly stop
    • A continuous audible warning will sound
    • Hazard warning lights will flash

Shut off rear PTO by pressing external PTO switch (C). A continuous audible warning will sound intermittently and hazard warning lights will flash OR pull back rear PTO switch (B) inside cab.

NOTE: If rear PTO is switched on in cab, rear PTO may be shut off at the external PTO switch, but cannot be switched on again without re-entering cab.

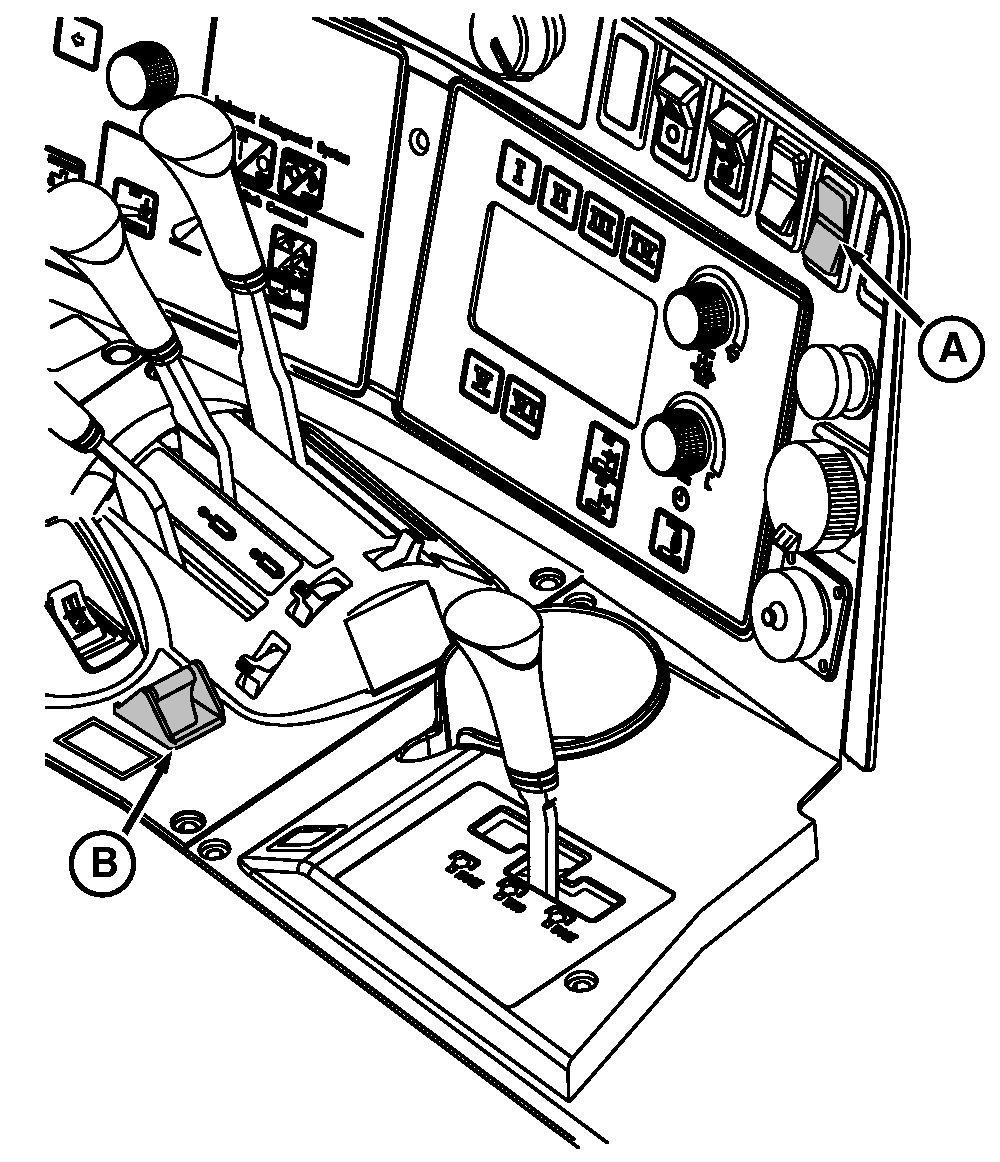

A-Preselector Switch
B-Rear PTO Switch

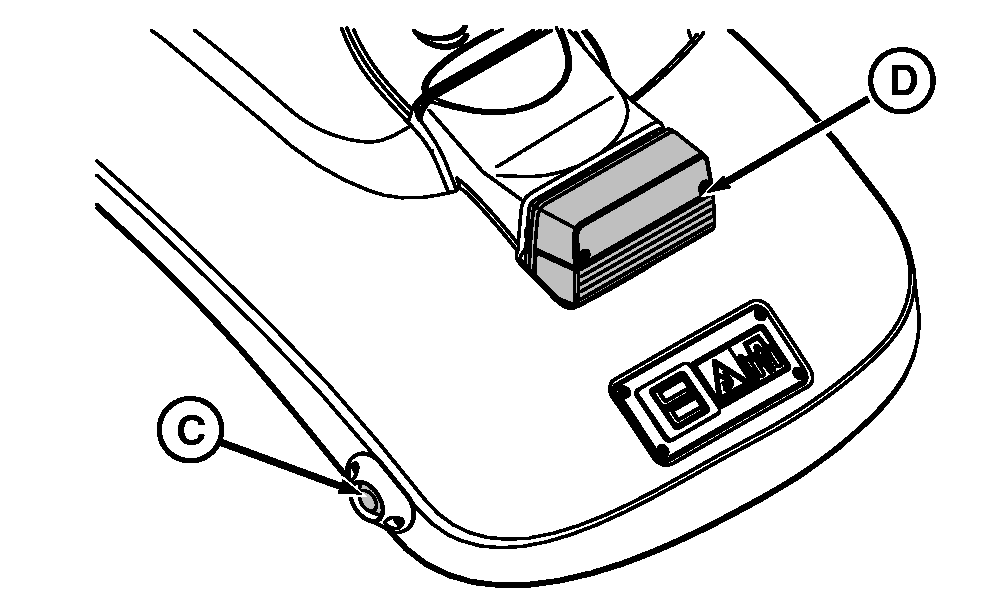

C-External PTO Switch
D-Turn Signal Light

RXA0068358
RXA0068359

Right-Hand Side Fender
