NOTE: SCV at Rear of Tractor: License plate bracket removed for photographic purposes.

Mid-Mount Valve (If Equipped): Front access panel removed for photographic purposes.

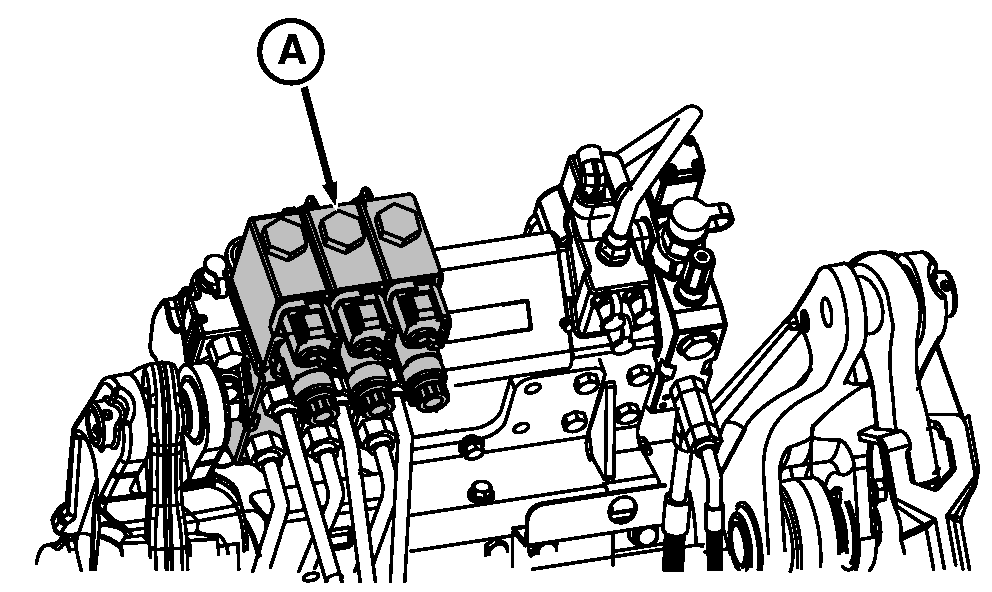

Tractor can be equipped with up to four selective control valve sections (A) at rear of tractor.

An electrohydraulic multi-function control lever and independent control valve (B) (located under cab on right-hand side) is also available to operate additional equipment (SCV 5 and 6) such as a loader or front hitch. (See OPERATING ELECTROHYDRAULIC MULTI-FUNCTION CONTROL LEVER in Operating Tractor section.)

OUMX005,000168F -19-22MAR05-1/1
