Changing Reversible PTO Stub Shaft-Standard

causym CAUTION: Avoid personal injury. PTO shaft may be hot from operation. Allow shaft to cool before changing.

IMPORTANT: Implements can be operated at 540 rpm only if the power input never exceeds 56 kW (75 hp). Operating PTO at lower speeds under heavy load could damage PTO.

NOTE: The 1000 rpm stub shaft has 21 splines for heavy PTO loads. The 540 rpm stub shaft has 6 splines for loads requiring less than 56 PTO kW (75 hp).

1. Rotate ends of snap ring to align with flat surface of PTO stub shaft.

2. Remove snap ring (A) and pull out shaft (B).

3. Clean stub shaft thoroughly. Coat splines with John Deere HD Non-Clay grease.

IMPORTANT: Avoid damage to PTO. Clean bore (C) thoroughly when installing PTO shaft for 1000 rpm use.

4. Install shaft into PTO housing.

540 rpm shaft -Rotate shaft back and forth while installing, to ensure shaft is properly seated in housing; continue to push shaft in while installing snap ring.

1000 rpm shaft -Rotate shaft back and forth while installing until engagement is felt.

NOTE: Shaft is properly engaged when shaft turns with high effort.

5. Install snap ring in groove to retain PTO stub shaft. Align ends of ring with flat surface of shaft.

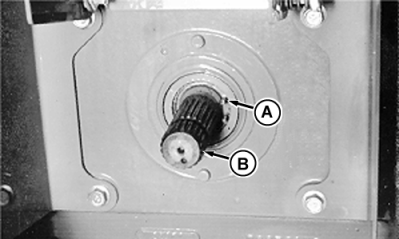

RW21879A
RW21883A


A-Snap Ring
B-Shaft
C-Bore

OUMX005,000169A -19-22MAR05-1/2

IMPORTANT: Make sure to select either 540 or 1000 rpm mode after changing PTO shaft.

6. Select correct PTO shaft mode. (See REVERSIBLE REAR PTO MODE LEVER POSITION (IF EQUIPPED) in this section.)

OUMX005,000169A -19-22MAR05-2/2
