Replacing Fan Belt

NOTE: Fan drive belt is equipped with an automatic tensioner which does not require adjustment.

1. Raise hood.

2. Remove cap screws (A) and lift side shield off of alignment studs.

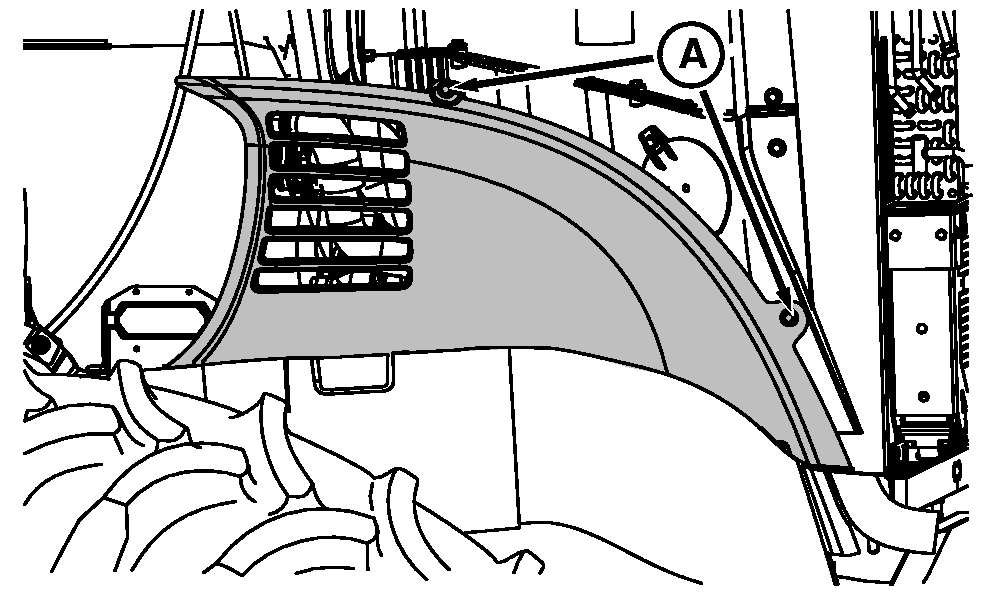

A-Cap Screws

RXA0068395

Right-Hand Side

OUMX005,00016A3 -19-22MAR05-1/3

3. If equipped, disconnect electrical sensor (A) on front side of fan vistronic drive.

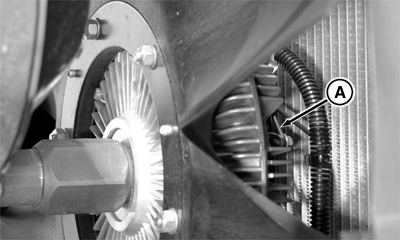

A-Electrical Sensor

RXA0056558

OUMX005,00016A3 -19-22MAR05-2/3

4. Release tension on belt using 1/2 in. drive breaker bar (A).

5. Remove belt from alternator pulley.

6. Relax tension and remove belt from crankshaft pulley and fan.

7. Replace belt.

8. If equipped, connect electrical sensor on front side of fan vistronic drive.

9. Install side shield and lower hood.

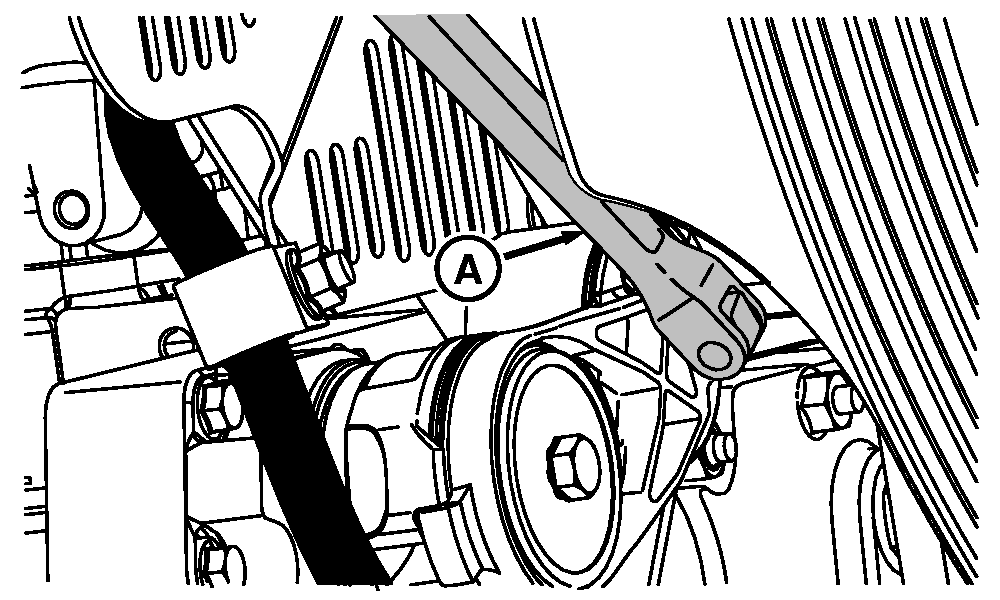

A-1/2 in. Drive Breaker Bar

RXA0068399
RXA0068155

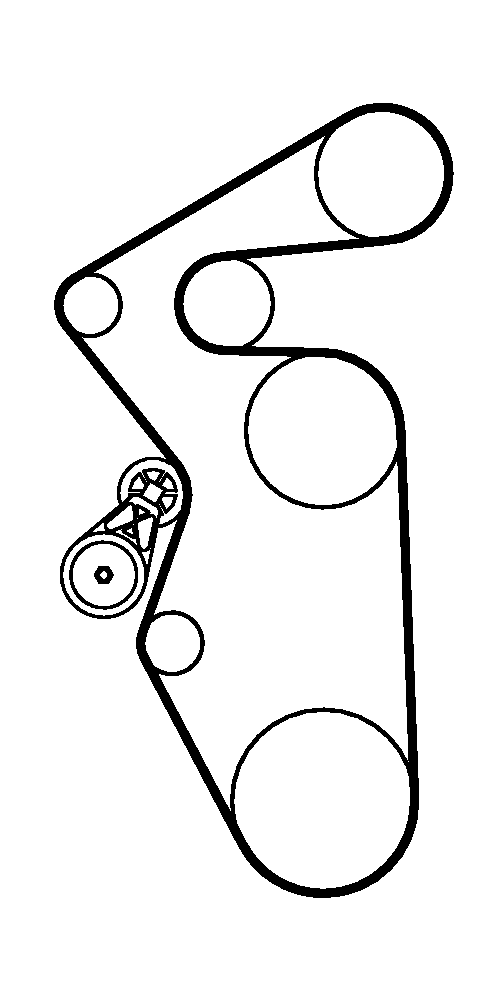

6.8 L Engine

RXA0068175

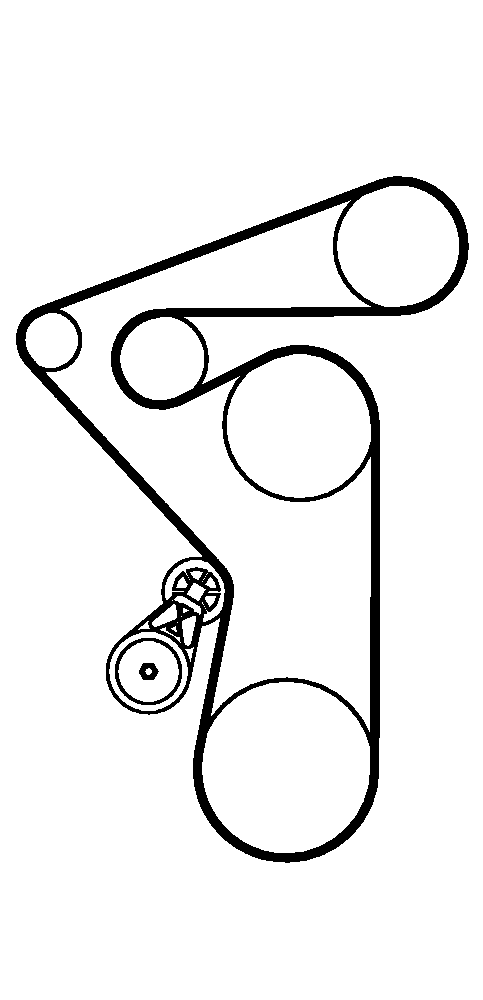

8.1 L Engine

OUMX005,00016A3 -19-22MAR05-3/3
