Checking Engine Oil Level-6.8 L Engine

NOTE: Make sure to push dipstick all the way in to check oil. Cross-hatch area is considered FULL.

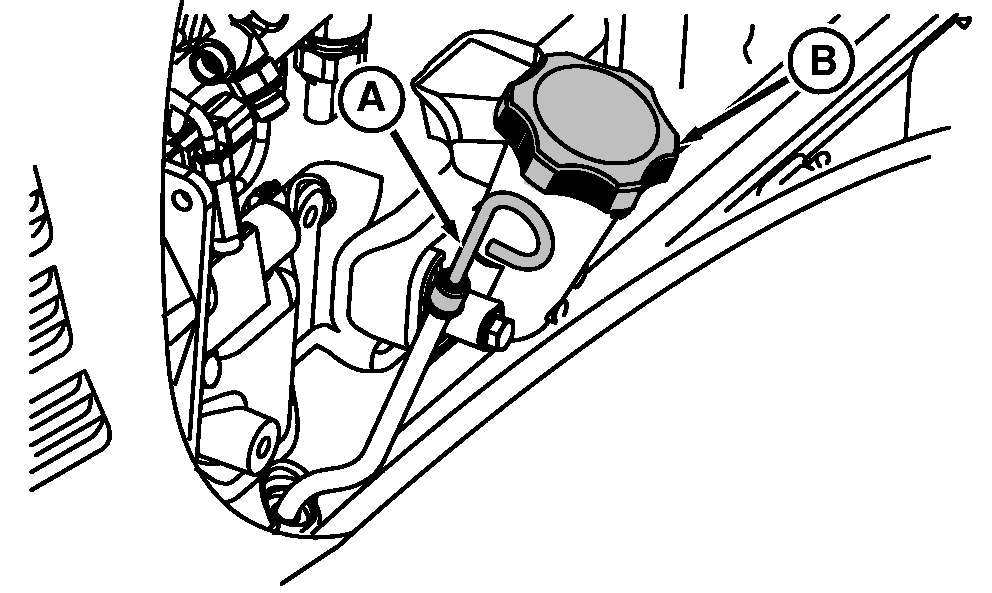

1. Remove dipstick (A) and check oil level with tractor on level ground. Oil level should be between the "ADD" and the top of the cross-hatch area on dipstick.

2. If needed, remove cap (B) and add oil recommended in Fuel, Lubricants and Coolant section.

IMPORTANT: Do not operate engine with oil level below the "ADD" mark on dipstick.

A-Dipstick
B-Filler Cap

OUMX005,00016AE -19-13JUL05-1/1
