Using External Raise and Lower Switches

causym CAUTION: To prevent injury or damage caused by tractor movement, be sure transmission is in PARK position before using external raise and lower switches. Stay clear of interference points when using external raise and lower switches.

Press and hold external switches (A) to raise or lower hitch. Hitch moves at slow speed when using external switches.

NOTE: Hitch Command lever (B) cannot be used simultaneously with external raise/lower switch.


A-External Raise/Lower Switches
B-Hitch Command Lever

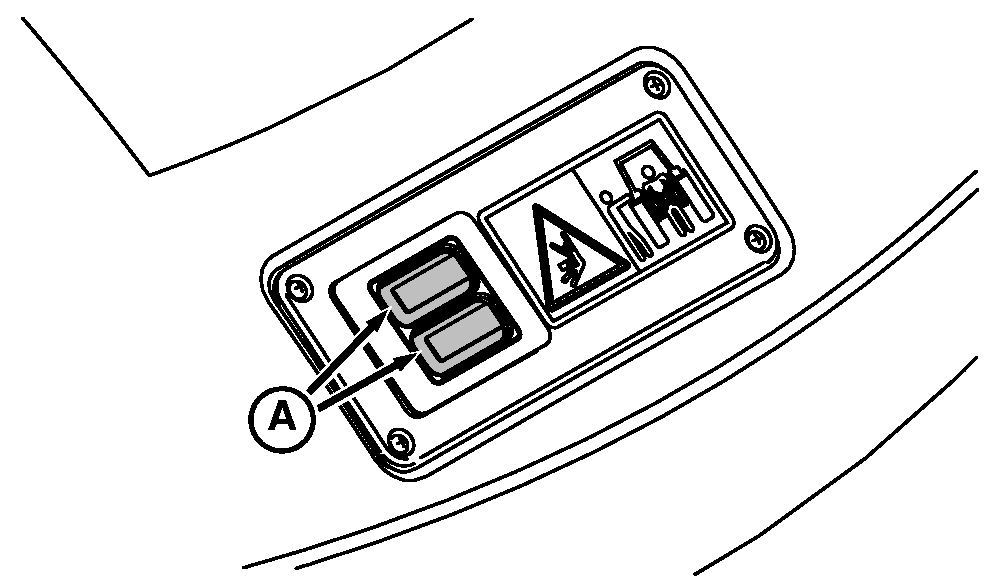

RXA0068299

Left-Hand Side Shown

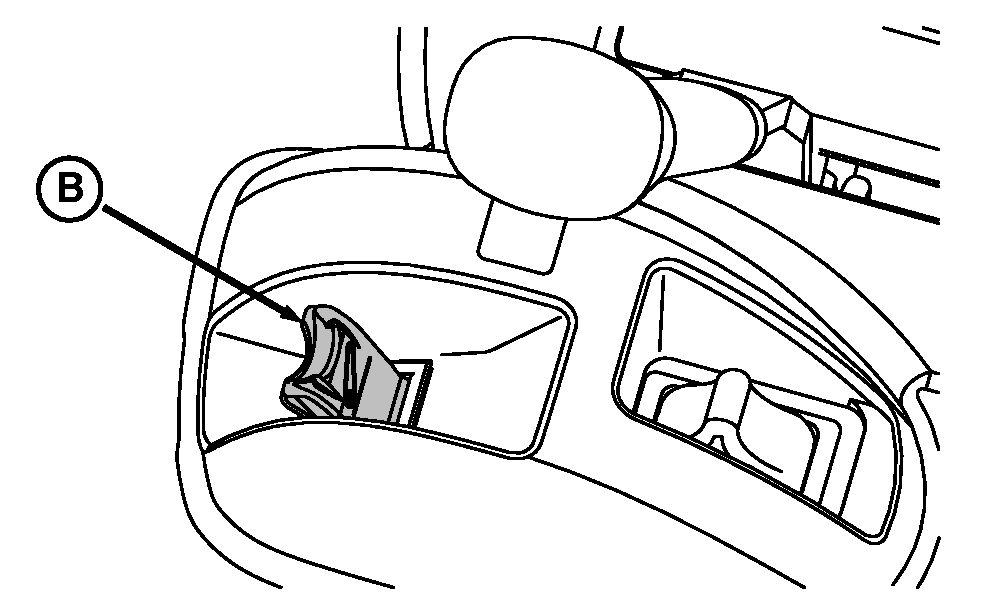

RXA0068297

Right-Hand Console

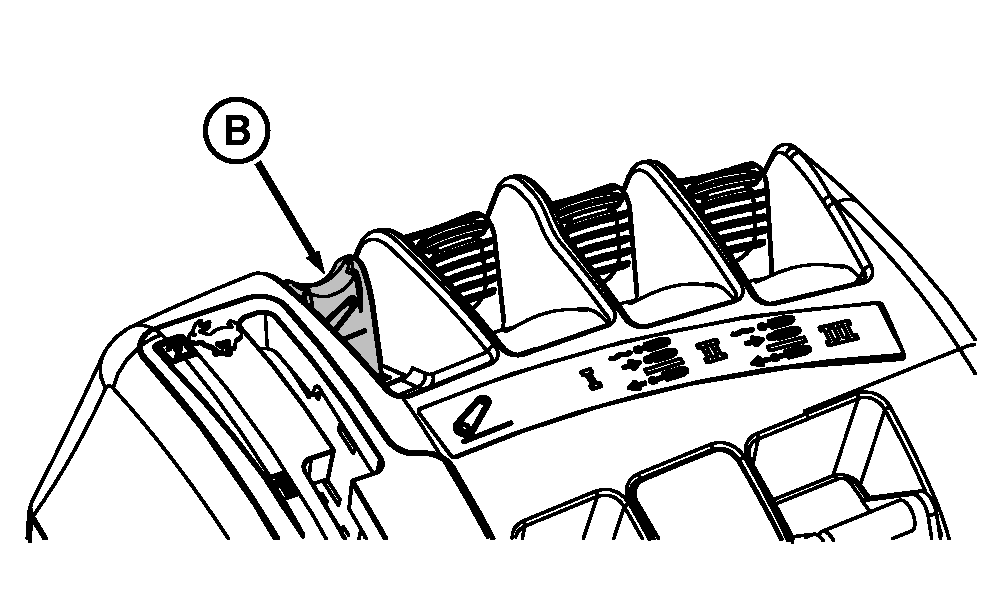

RXA0068298

CommandArm

OUMX005,00016B3 -19-02JUN05-1/1
