Positioning Center Link

IMPORTANT: Excessive power can damage an implement, and too large an implement can damage the tractor.

Tractor is recommended for Category 3 or 3N implements with heavy draft or heavy transport loads. Category 2 implements are not recommended for use on this tractor.

The lowest position (C) provides the greatest lifting height (additional 10° upward angle). The highest position (A) provides the most lifting force.

Use center hole (B) for implements requiring higher lift capacity but not requiring the 10° upward angle.

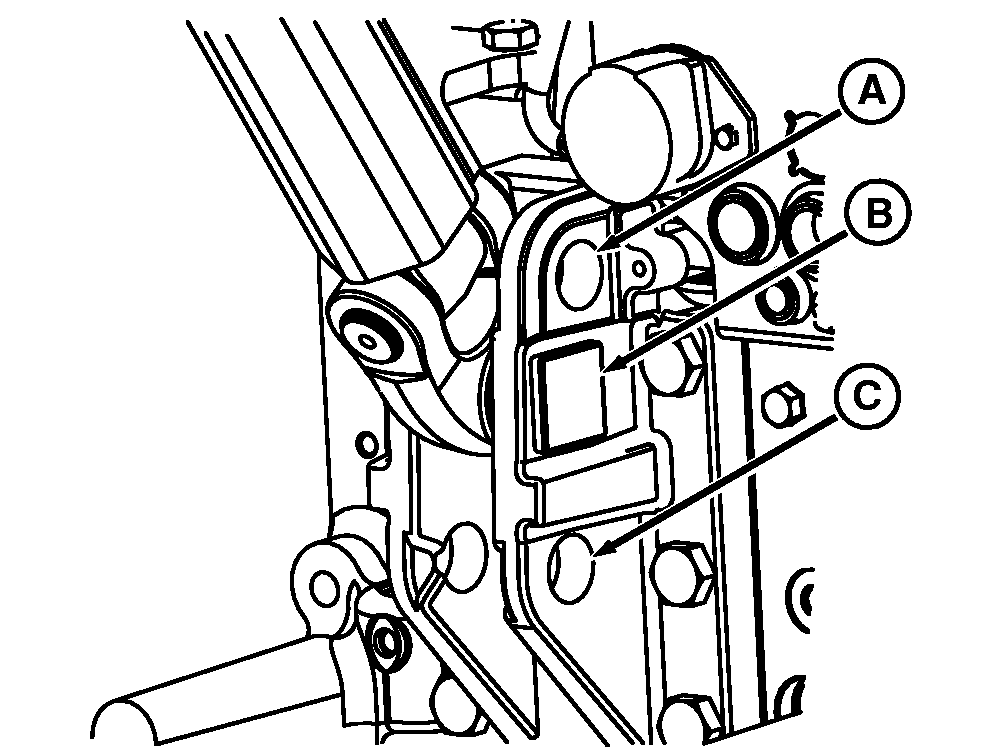

A-Top Hole; 685 mm (27 in.) Mast
B-Center Hole; 685 mm (27 in.) Mast
C-Bottom Hole; 610 mm (24 in.) Mast
