Positioning Lift Links

IMPORTANT: Excessive power can damage an implement, and too large an implement can damage the tractor.

Tractor is recommended for Category 3 or 3N implements with heavy draft or heavy transport loads. Category 2 implements are not recommended for use on this tractor.

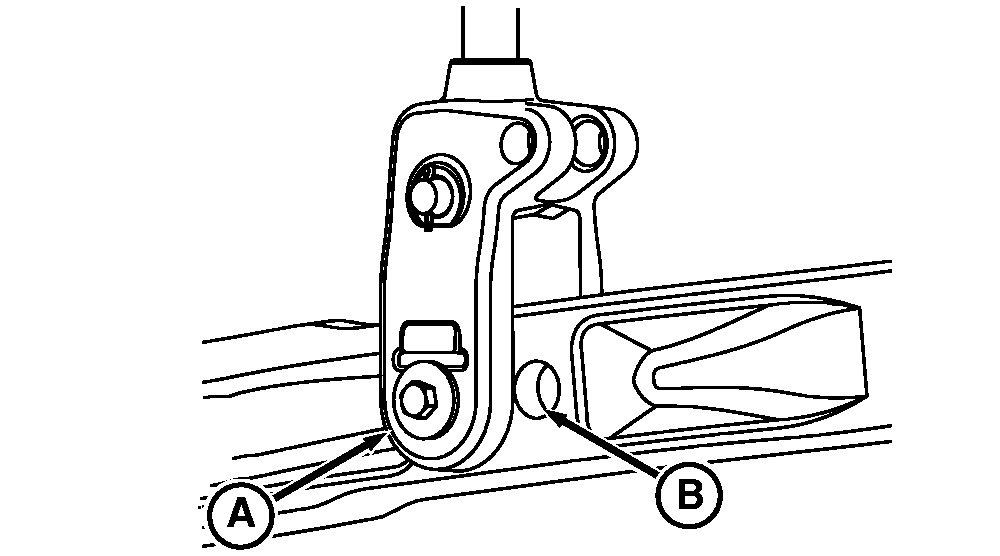

• Position (A)-Normal position (lifting height and force)
• Position (B)-For heavier implements (reduces lifting height, but maximizes lifting force)

A-Front Hole
B-Rear Hole

OUMX005,00016B8 -19-22MAR05-1/1
