Operating Pick-Up Hitch (If Equipped)

The pick-up hitch is operated using Hitch Command lever and one selective control valve.

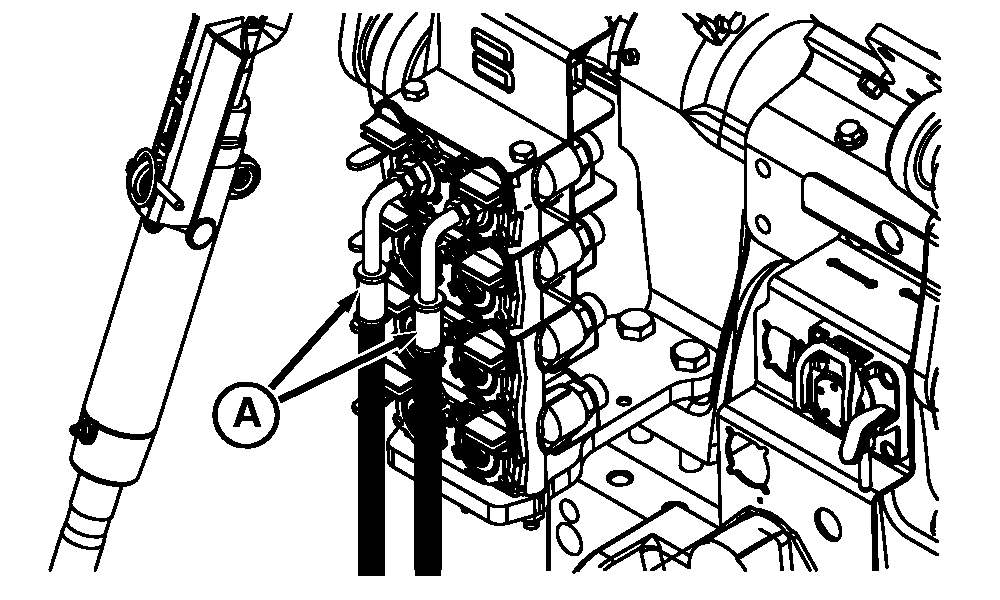

1. Insert pick-up hitch hydraulic hoses (A) into top selective control valve receptacles.

2. Start engine and raise draft links to maximum height.


A-Hydraulic Hoses

RXA0068318

OUMX005,00016BA -19-02JUN05-1/2

3. Move lock pin lever (A) to the right to release the hitch locking device.

4. Lower draft links and pick-up hitch (B) to desired height using Hitch Command lever.

5. Extend hitch hook fully using SCV control lever.

6. Back up tractor and raise draft links and pick-up hitch so hook engages trailer towing eye.

7. Raise draft links to transport/locked position and retract pick-up hitch fully to locked position.

8. Move lock pin lever (A) to the left to engage the hitch locking device

causym CAUTION: Before driving away, make sure pick-up hitch is fully raised and locked in both horizontal and vertical positions.

9. Check both hitch operations for locked position:

  • Hitch should not lower with Hitch Command lever
  • Hitch should not extend when SCV lever is operated

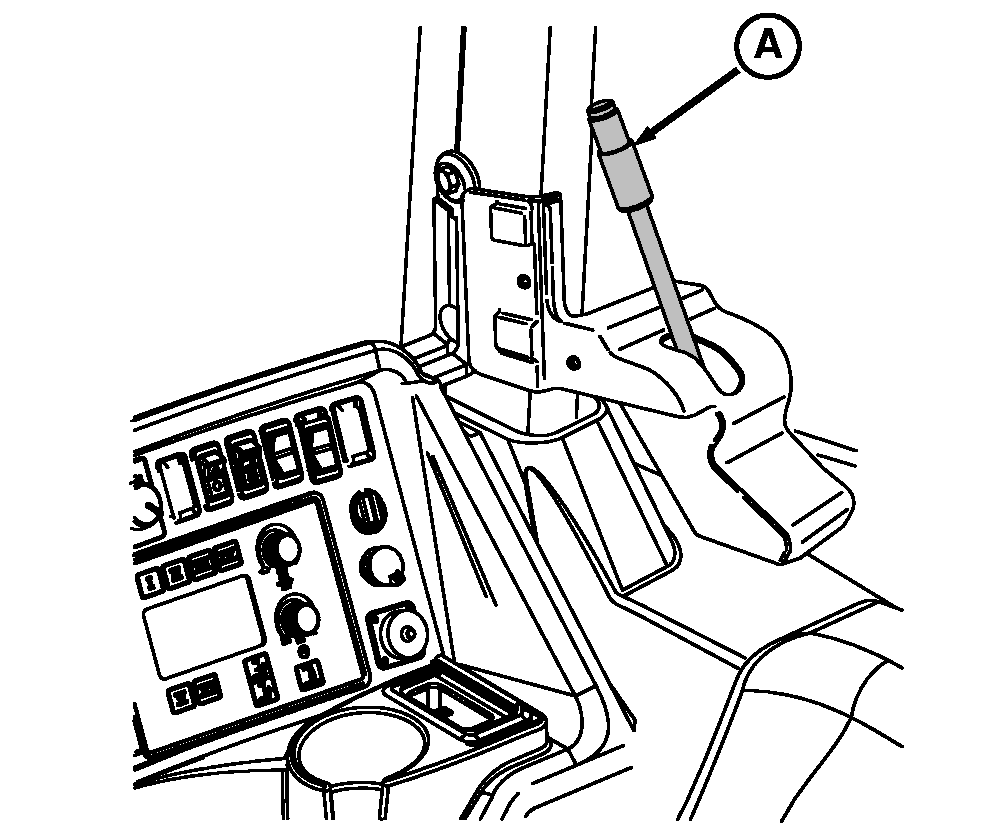

A-Lock Pin Lever (In Cab)

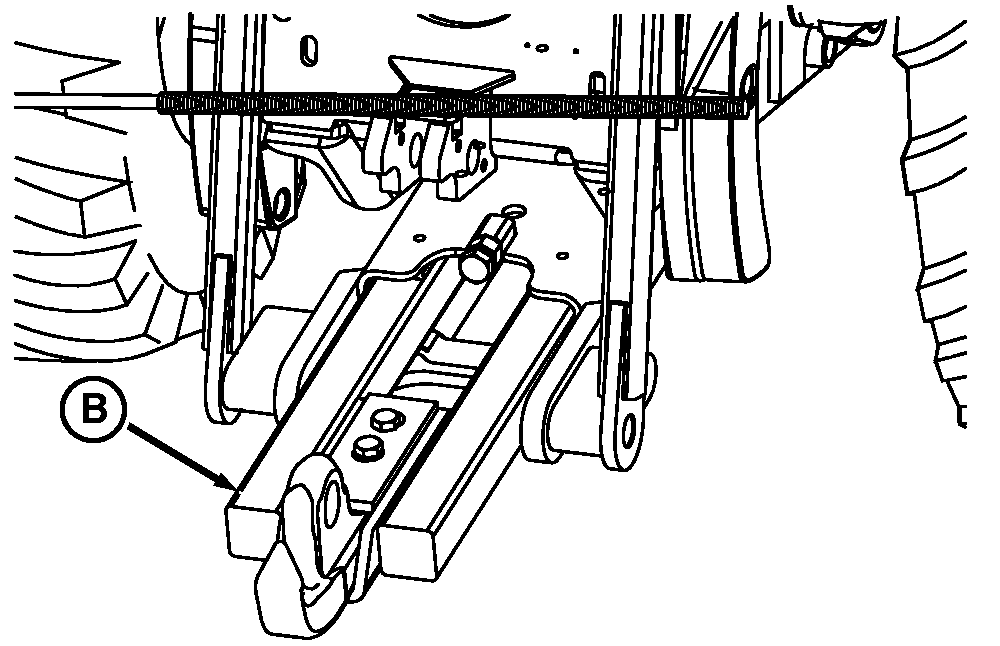

B-Pick-Up Hitch

RXA0068319
RXA0068320

OUMX005,00016BA -19-02JUN05-2/2
