Hydraulic Valves

NOTE: SCV at Rear of Tractor: License plate mount removed for photographic purposes.

Mid-Mount Valve (If Equipped): Front access panel removed for photographic purposes.

Tractor can be equipped with up to four selective control valve sections (A) at rear of tractor.

An electrohydraulic multi-function control lever and independent control valve (B) (located under cab on right-hand side) is also available to operate additional equipment such as a loader or front hitch. (See OPERATING ELECTROHYDRAULIC MULTI-FUNCTION CONTROL LEVER in Operating Tractor section.)


A-Selective Control Valves
B-Mid-Mount Independent Control Valve

RXA0068336

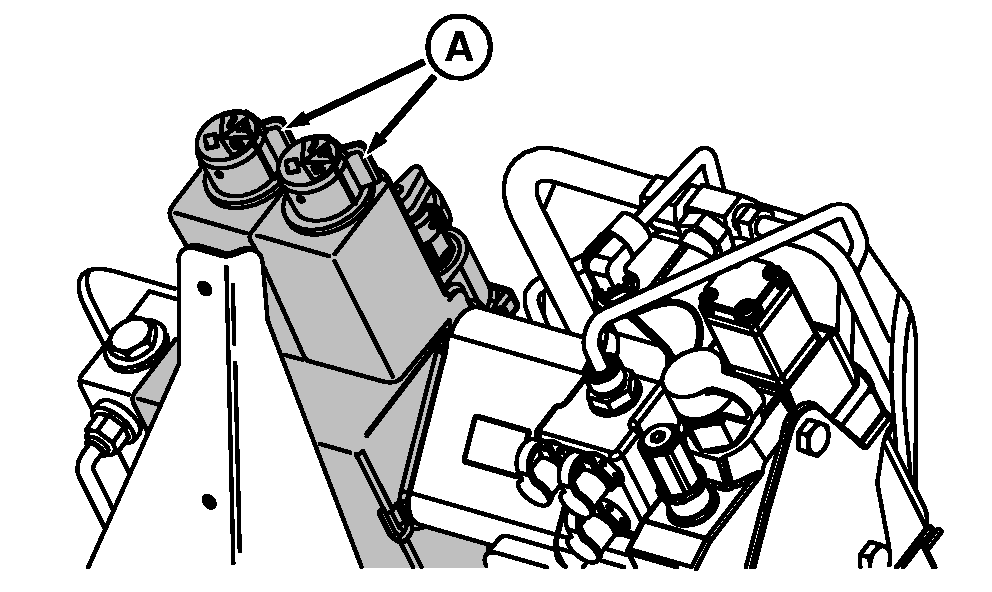

Selective Control Valves (SCV) at Rear of Tractor

RXA0068337

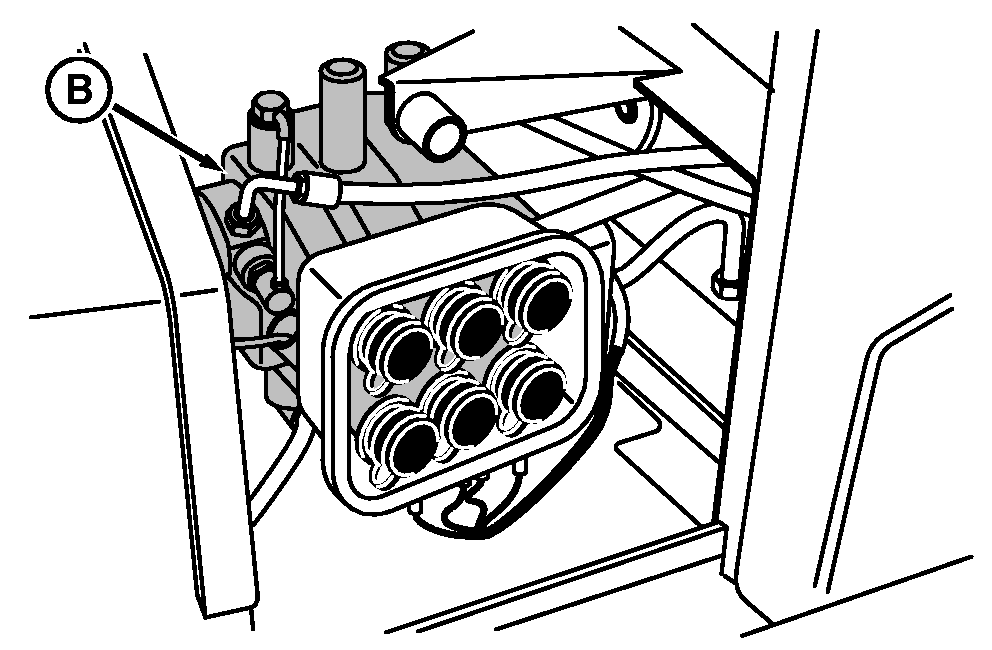

Mid-Mount Valve-Electrohydraulic Independent Control Valve (EH-ICV)

OUMX005,00016C0 -19-22MAR05-1/1
