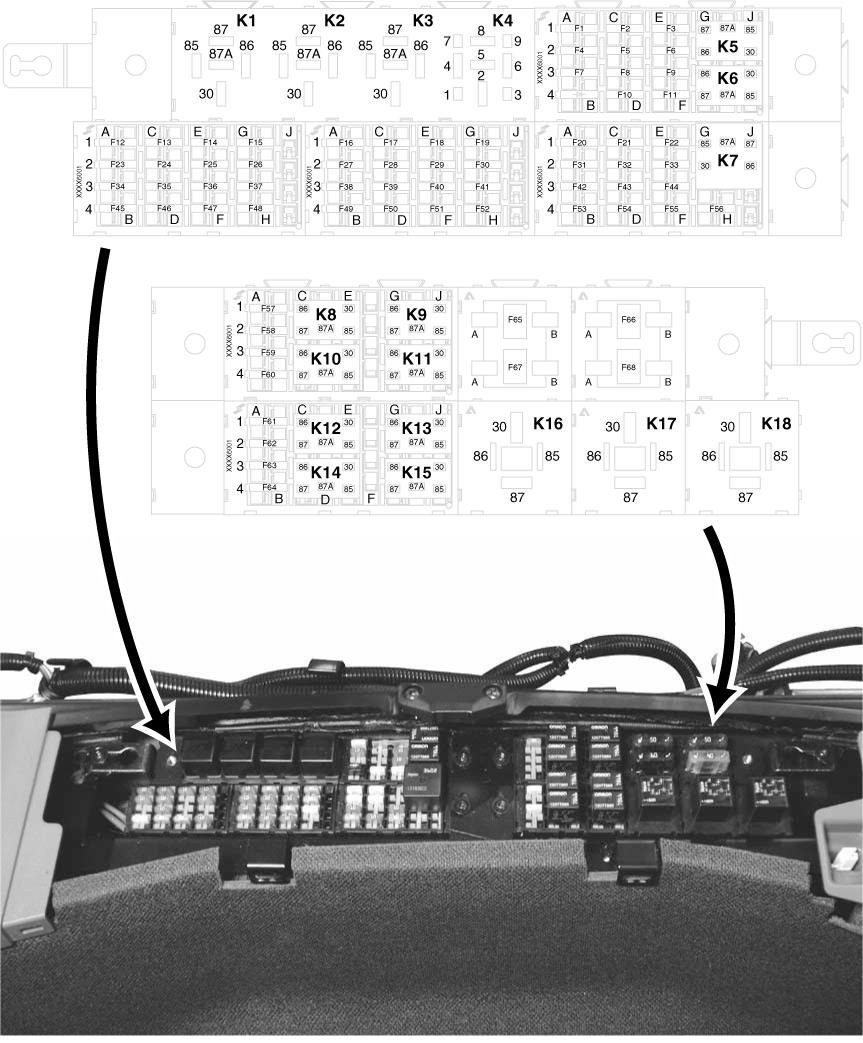

F1-Alternator
F2-AutoPowr Park Pump Off Fuse
F3-AutoPowr Park Pump Off Fuse
F4-AutoPowr Cab Control Unit Limp Home Input
F5-Transmission Enable Relay Bypass
F6-AutoPowr Control Unit Switched Power
F7-Not Used
F8-Not Used
F9-Engine Control Unit Unswitched Power
F10-Left Tail Light, Right Front Clearance, Right Extremity, License Plate
F11-Right Tail Light, Left Front Clearance, Left Extremity
F12-Secondary Hydraulic Control Unit
F13-AutoPowr Control Unit / PowrQuad-Plus / AutoQuad-Plus Multifunction Control Unit
F14-AutoPowr Cab Control Unit / PowrQuad-Plus / AutoQuad-Plus Mulitfunction Control Unit Valve Power
F15-AutoPowr Cab Control Unit / PowrQuad-Plus / AutoQuad-Plus Multifunction Control Unit Switches Power, Front PTO Control Unit, AutoPowr Control Unit (PTO), Engine Control Unit (Engine Air Filter Pressure Sensor)
|
F16-Operator Presence Switch, Active Seat Keep Alive Fuse (PowrQuad-Plus / AutoQuad-Plus Only)
F17-Key Switch
F18-Trailer Lighting and Accessory Connector Relay
F19-Rear Fender Floods
F20-Front Left Inner Flood
F21-Front Right Inner Flood
F22-Not Used
F23-Corner Post Display, Tractor Equipment Control Unit, CommandCenter Display, SCV TOUCHSET™ Display (AutoPowr only)
F24-AutoPowr / PowrQuad-Plus / AutoQuad-Plus Deluxe Hydraulic Control Unit Switched Power
F25-Not Used
F26-AutoTrac Control Unit
F27-Radio, Dome Lamp, Horn, Steering Column Module
F28-CommandCenter Display, Automatic Temperature Control Unit Unswitched Power, SERVICE ADVISOR™ Power, Tractor Equipment Control Unit
F29-AutoPowr Cab Control Unit / PowrQuad-Plus / AutoQuad-Plus Multifunction Control Unit Keep Alive Fuse
F30-Wiper Circuit Relay
F31-Front Left Outer Flood
F32-Front Right Outer Flood
F33-Not Used
F34-Not Used
F35-AutoPowr Cab Control Unit and PowrQuad-Plus / AutoQuad-Plus Multifunction Control Unit ELX Power
|
F36-Not Used
F37-Not Used
F38-Road Light Switch
F39-AutoPowr Control Unit Unswitched Power
F40-Beltline Floods Relay
F41-A/C Compressor Clutch / Diode Assembly (Manual A/C Only), Pressurizer Blower Motor
F42-Manual A/C Blower Motor Switch Relay, Automatic Temperature Control Unit
F43-Not Used
F44-SCV I-IV Power (AutoPowr Deluxe Hydraulic Control Unit)
F45-Standard Seat Height Control Switch, Standard Seat Compressor Assembly, Active Seat (AutoPowr Cab Control Unit / PowrQuad-Plus / AutoQuad-Plus Multifunction Control Unit)
F46-Business Band/CB Connector, FIELD OFFICE™, Left Junction Block Switched Power
F47-Convenience Outlet 1, Right Junction Block, Auxiliary Power Strip, Lighter 1 Switched Power
F48-JDLINK™ Control Unit Switched Power
F49-Business Band/CB Connector, FIELD OFFICE™, Left Junction Block, Convenience Outlet 1, Right Junction Block, Auxiliary Power Strip, Lighter 1 Unswitched Power
F50-JDLINK™ Control Unit Unswitched Power
|
F51-AutoPowr / PowrQuad-Plus / AutoQuad-Plus Deluxe Hydraulic Control Unit, Front PTO Control Unit, Secondary Hydraulic Control Unit Keep Alive Circuit
F52-Not Used
F53-Side and Rear Roof Floods Relay, Roof Beacon
F54-Front Flood Lights Relays
F55-Engine Control Unit Power Relay
F56-Not Used
F57-Right/Left Turn Signal Relays, Hazard Light Switch
F58-Not Used
F59-Brake Light Relay
F60-Not Used
F61-Low Beam Relay
F62-Not Used
F63-High Beam Relay
F64-Not Used
F65-ELX Relay
F66-Accessory Relay
F67-Implement Connector Relay
F68-Manual HVAC Circulation Blower Motor Relay/Automatic Temperature Control Unit Blower Motor Driver Relay
K1-Inner Flood Lights Relay
K2-Trailer Lighting and Accessory Connector Relay
K3-Rear Fender Floods Relay
K4-Outer Flood Lights Relay
K5-Transmission Enable Relay
K6-Tail Lights, Front Clearance Lights, License Plate Light Relay
K7-Engine Control Unit Power Relay
K8-Right Turn Signal Relay
|
