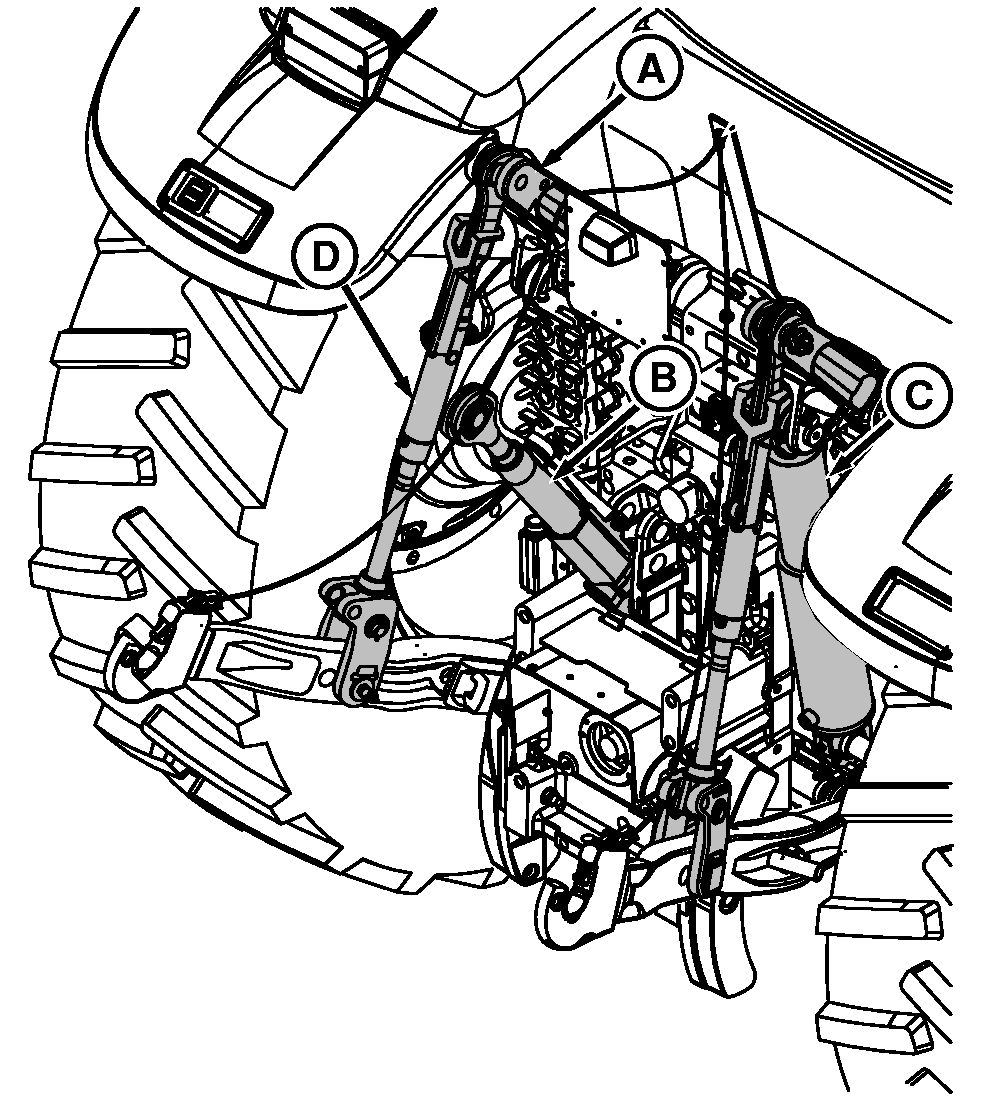

Lubricate hitch components (A-D).
Use John Deere SD Polyurea grease or other grease as specified in Fuel, Lubricants and Coolant section.
A-Rockshaft (1 fitting, each side) B-Center Link (10050 lb Hitch-2 fittings) (14000 lb Hitch-1 fitting) C-Lift Cylinder (2 fittings, each cylinder) D-Lift Link (2 fittings, each link)
OUMX005,00016C8 -19-02JUN05-1/1
