Operating Windshield Wiper and Washer

Wiper/washer switch (A) has four positions:

• Off
• Intermittent Wipe
• Slow Speed
• Fast Speed

Push switch in to operate optional windshield washer.

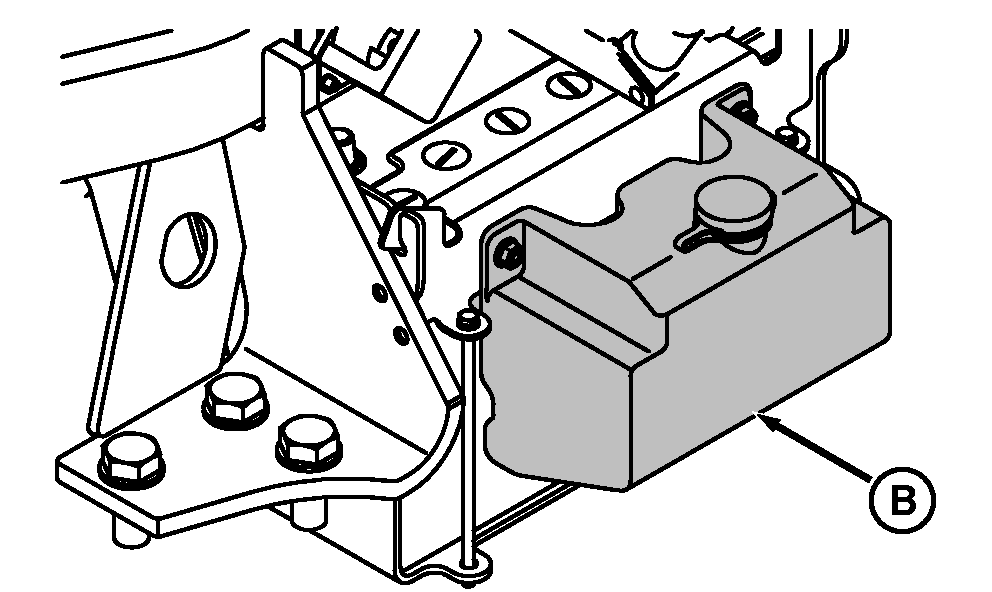

Fill reservoir (B) with non-freezing windshield washer fluid. Reservoir is located inside the battery box.

NOTE: Windshield washer nozzles can be adjusted by inserting a small pin into nozzle opening.

A-Windshield Wiper/Washer Switch
B-Washer Fluid Reservoir

OUMX005,00016DC -19-22MAR05-1/1
