Installing QUIK-TATCH Weights

Up to 20 QUIK-TATCH weights can be installed on tractors.

When required, install QUIK-TATCH weights, balanced on each side of center (A). The first two weights must be installed as a pair.

To hold six weights or fewer in position, insert retaining bolts (B) through holes and secure with a nut. Tighten to specifications.

Specification

Retaining Bolts -Torque 230 N·m (170 lb-ft)

RW22300A
RW22301A


A-Center
B-Retaining Bolts

OUMX005,00016E4 -19-22MAR05-1/2

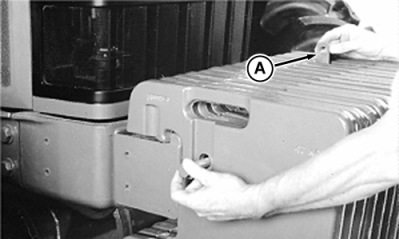

When eight or more weights are installed, insert retainers (A) between weights, one with threaded hole upward and the other with threaded hole downward. Tighten bolts to specifications.

Specification

Retaining Bolts -Torque 230 N·m (170 lb-ft)


A-Retainers
