OMAR194993: 7720, 7820 and 7920 Tractors, Block File: OUMX005_0001736_19

MFWD or TLS Fender and Steering Stop Settings

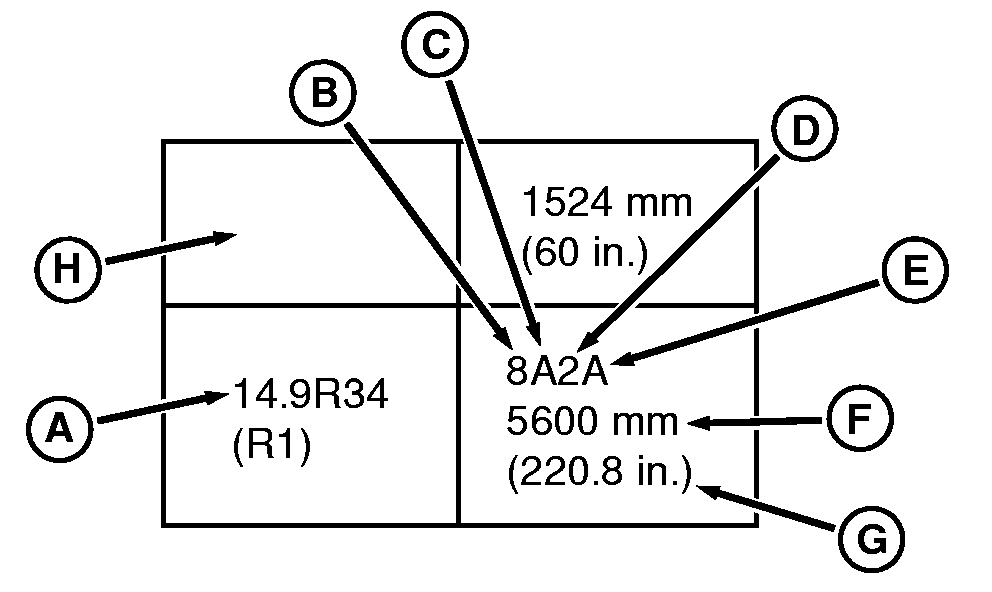

NOTE: This is an explanation of the tables in the next several pages.

The first row across the top of the page list tread spacing in millimeters and inches.

Column one lists the tire size (A).

The first number (B) in column two identifies an eight position rim used. The first letter (C) indicates which diagram to follow from EIGHT POSITION WHEEL SETTINGS. The next number (D) is the correct steering stop position. The next letter (E) is the fender setting, which is taken from MFWD FENDER SETTINGS-DELUXE PIVOTING FENDERS. The last two entries, (F) and (G), indicate turning radius in millimeters and inches respectively.

A-Tire Size
B-Eight or Sixteen Position Rim
C-Tread Setting
D-Steering Stop
E-Fender Setting
F-Turning Radius in Millimeters
G-Turning Radius in Inches
H-Size

OUMX005,0001736 -19-15AUG05-1/5

MFWD Front Tire, Fender and Steering Stop Settings
Tire Size	1576 mm (62 in.)	1676 mm (66 in.)	1780 mm (70 in.)
16.9R30 R1-R1W	8A4A 6100 mm 240 in.	8B2B 5300 mm 209 in.	8C1C 5100 mm 201 in.
420/85R34	N/A	8B5B 6400 mm 252 in.	8C3C 5800 mm 228 in.
420/90R30	8A4A 6100 mm 240 in.	8B2B 5300 mm 209 in.	8C1C 5100 mm 201 in.
480/70R30	8A6A^a 7000 mm 276 in.	8B3A 5800 mm 228 in.	8C2B 5300 mm 209 in.
480/70R34	N/A	8B5A 6400 mm 252 in.	8C3B 5800 mm 228 in.
540/65R30	8A5A^a 6700 mm 264 in.	8B3A 5800 mm 228 in.	8C2B 5300 mm 209 in.
540/65R34	N/A	N/A	N/A
600/65R28	N/A	8J6A 7500 mm 295 in.	8K4B 6100 mm 240 in.
600/70R30	N/A	N/A	8K6B 7300 mm 287 in.
^aFender frame may contact tire on tight turns.

OUMX005,0001736 -19-15AUG05-2/5

MFWD Front Tire, Fender and Steering Stop Settings
Tire Size	1882 mm (74.1 in.)	1979 mm (78 in.)	2083 mm (82 in.)	2184 mm (86 in.)
16.9R30 R1-R1W	8D0D 5100 mm 201 in.	8F0E 5100 mm 201 in.	8G0F 5200 mm 205 in.	8H0G 5200 mm 205 in.
420/85R34	8D2E 5300 mm 209 in.	8F0F 5100 mm 201 in.	8G0G 5200 mm 205 in.	8H0H 5200 mm 205 in.
420/90R30	8D0E 5100 mm 201 in.	8F0F 5100 mm 201 in.	8G0G 5200 mm 205 in.	8H0H 5200 mm 205 in.
480/70R30	8D1C 5100 mm 201 in.	8F0D 5100 mm 201 in.	8G0E 5200 mm 205 in.	8H0F 5200 mm 205 in.
480/70R34	8D2C 5300 mm 209 in.	8F1D 5200 mm 205 in.	8G0E 5200 mm 205 in.	8H0F 5200 mm 205 in.
540/65R30	8D1C 5100 mm 201 in.	8F0D 5100 mm 201 in.	8G0E 5200 mm 205 in.	8H0F 5200 mm 205 in.
540/65R34	8D6C 8100 mm 319 in.	8F6D 7400 mm 291 in.	8G5E 6600 mm 260 in.	8H4F 6200 mm 244 in.
600/65R28	8L2C 5300 mm 209 in.	8N0D 5100 mm 201 in.	8O0E 5200 mm 205 in.	8P0F 5200 mm 205 in.
600/70R30	8L5C 6500 mm 256 in.	8N4D 6100 mm	8O3E 5700 mm 224 in.	8P2F 5500 mm 217 in.

OUMX005,0001736 -19-15AUG05-3/5

TLS Front Tire, Fender and Steering Stop Settings
Tire Size	1576 mm (62 in.)	1676 mm (66 in.)	1780 mm (70 in.)
16.9R30 R1-R1W	8A5A 6500 mm 256 in.	8B3B 5700 mm 224 in.	8C1C 5100 201 in.
420/85R34	N/A	8B5B 6400 mm 252 in.	8C3C 5700 mm 224 in.
420/90R30	8A4A 6100 mm 240 in.	8B2B 5300 mm 209 in.	8C1C 5100 201 in.
480/70R30	8A6A^a 7000 mm 276 in.	8B4A 5800 mm 228 in.	8C2B 5200 mm 205 in.
480/70R34	N/A	8B5A 6400 mm 252 in.	8C3B 5700 mm 224 in.
540/65R30	8A5A 6600 mm 260 in.	8B4A 5800 mm 228 in.	8C2B 5200 mm 205 in.
540/65R34	N/A	N/A	N/A
600/65R28	N/A	8J6A 7500 mm 295 in.	8K4B 6000 mm 236 in.
600/70R30	N/A	N/A	8K6B 280 in.
^aFender frame may contact tire on tight turns.

OUMX005,0001736 -19-15AUG05-4/5

TLS Front Tire, Fender and Steering Stop Settings
Tire Size	1882 mm (74 in.)	1979 mm (78 in.)	2083 mm (82 in.)	2184 mm (86 in.)
16.9R30 R1-R1W	8D0D 5000 mm 197 in.	8F0E 5000 mm 197 in.	8G0F 5100 201 in.	8H0G 5100 201 in.
420/85R34	8D2D 5200 mm 205 in.	8F0E 5000 mm 197 in.	8G0F 5100 201 in.	8H0G 5100 201 in.
420/90R30	8D0D 5000 mm 197 in.	8F0E 5000 mm 197 in.	8G0F 5100 201 in.	8H0G 5100 201 in.
480/70R30	8D1C 5100 201 in.	8F0D 5000 mm 197 in.	8G0E 5100 201 in.	8H0F 5100 201 in.
480/70R34	8D2C 5300 mm 209 in.	8F0D 5200 mm 205 in.	8G0E 5100 201 in.	8H0F 5100 201 in.
540/65R30	8D1C 5100 201 in.	8F0D 5000 mm 197 in.	8G0E 5100 201 in.	8H0F 5100 201 in.
540/65R34	8D6C 8100 mm 319 in.	8F6D 7400 mm 291 in.	8G5E 6800 mm 268 in.	8H5F 6400 mm 252 in.
600/65R28	8L2C 5400 mm 213 in.	8N2D 5400 mm 213 in.	8O1E 5200 mm 205 in.	8P0F 5100 201 in.
600/70R30	8L4C 6300 mm 248 in.	8N4D 6100 mm 240 in.	8O3E 5800 mm 228 in.	8P1F 5300 mm 209 in.

OUMX005,0001736 -19-15AUG05-5/5
