Using Sway Blocks (If Equipped)

NOTE: 6350 kg (14,000 lb) hitch shown. 4559 kg (10,050 lb) is similar.

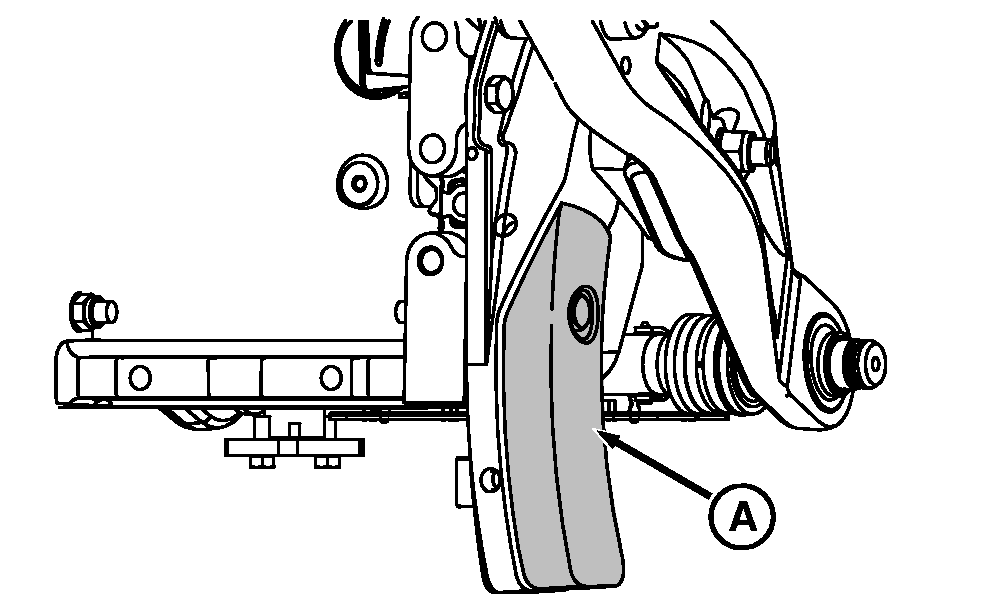

Install sway blocks (A) in lower position to minimize side sway of hitch.


A-Sway Block

RXA0070294

Right-Hand Side

OUMX005,0001739 -19-22MAR05-1/2

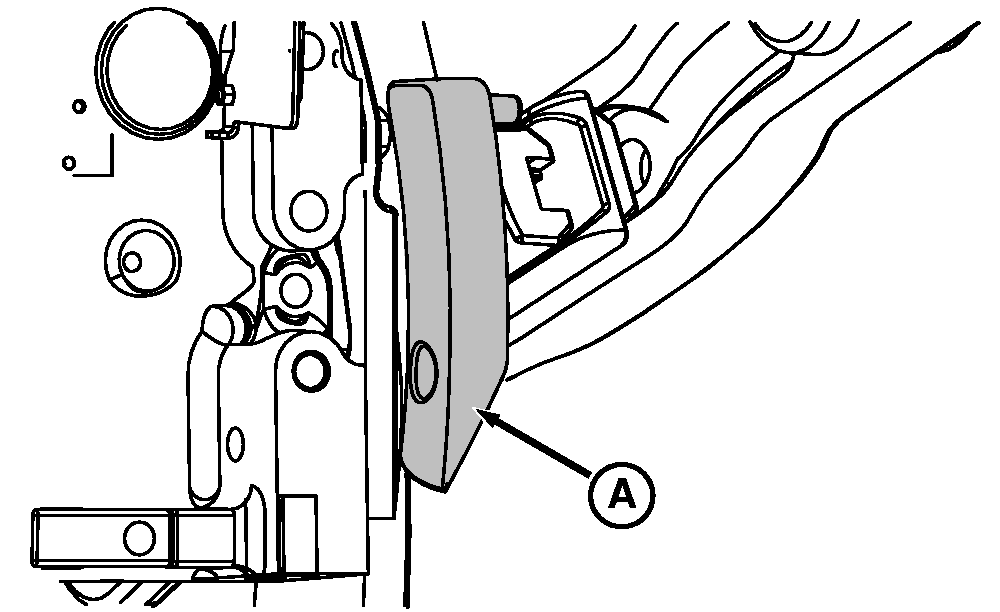

Mount sway blocks (A) in upper position using existing hardware to allow side sway when hitch is lowered. Side sway is prevented when hitch is raised.

IMPORTANT: To prevent draft link interference, be sure distance between tires is:

  • Category 3N Hitch-1.09 m (43 in.)

  • Category 3 Hitch-1.17 m (46 in.)


A-Sway Block

RXA0068302

OUMX005,0001739 -19-22MAR05-2/2
