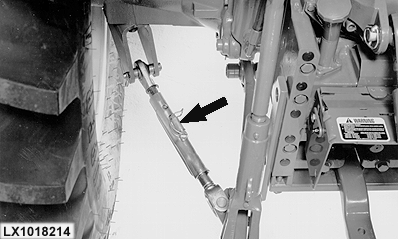

Adjusting Stabilizer Bar (If Equipped)

NOTE: Early model tractors are equipped with a deluxe stabilizer on left-hand side and centering stabilizer on right-hand side. Late models are equipped with deluxe stabilizer on both left and right-hand side.

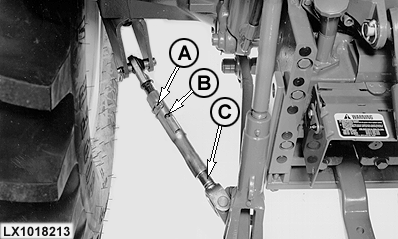

The bar can be adjusted to suit any category hitch by means of pin (A) and/or threaded rod (B). Alternative bolt position (C) also alters the category. The different categories are marked on the threaded rod by grooves.

if pin (A) is not required, it must be removed to allow draft links to sway. It can be stored in the tubular retainer.

A-Pin
B-Threaded Rod
C-Alternative Bolt Position

OUMX005,000173C -19-22MAR05-1/1
