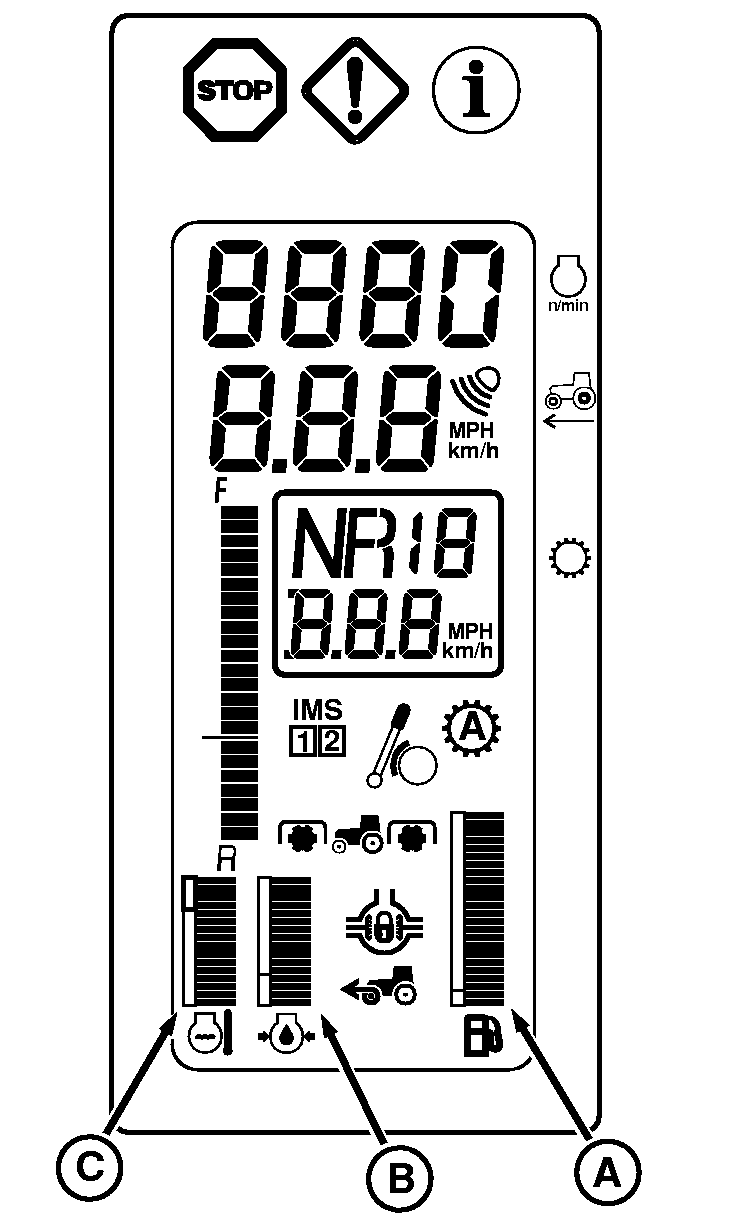

Gauges-Fuel Level, Engine Oil Pressure and Coolant TemperatureA-Fuel Level Gauge: Displays fuel level in tank. Each lighted segment represents 4% of the fuel tank's total capacity. When fuel tank is full, all segments are lit. Top segment will go out when 4% of the fuel has been used. When only the bottom segment is lit, the tank is nearly empty. B-Engine Oil Pressure Gauge: Shows engine oil pressure, between 8 and 320 kPa (1 and 46 psi). All segments are off when oil pressure is extremely low, 0-7 kPa. (0-1 psi) All segments are lit when pressure is 320 kPa (46 psi) and above. C-Coolant Temperature Gauge: Shows engine coolant temperature between 50 and 120° C. All segments are off when coolant temperature is below 50° C. All segments are lit when temperature is 120° C and above.
|
|
