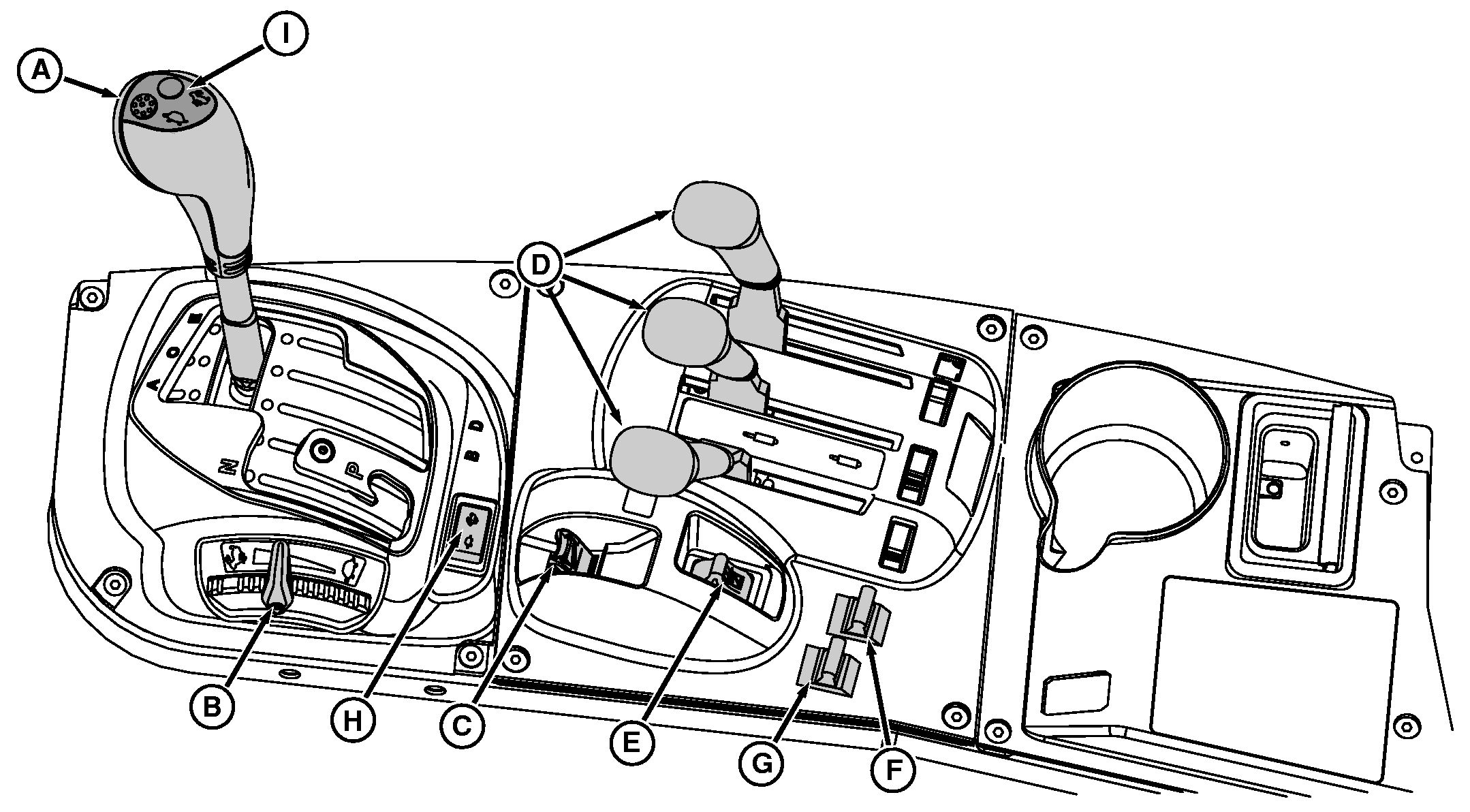

Right-Hand Control Console-PowrQuad-Plus™ (PQ+) or AutoQuad-Plus™ (AQ+) Transmission

A-Range Shift Lever B-Hand Throttle C-Hitch Command Lever D-Hydraulic Control Levers (SCV's) (See Hydraulic System-Lever Operated SCV's)

E-IMS Sequence Switch (See IMS section) F-Rear PTO Switch

G-Front PTO Switch (If Equipped) H-Upshift/Downshift Switch-Console

I-Upshift/Downshift Switch-Shift Lever

OUO1011,0005371 -19-15AUG05-1/1
