IMS Functions-Auto Shift Resume (AutoQuad (AQ+) Only)

Automatic shift resume can also be programmed with IMS in LEARN mode.

When automatic shifting is active, the transmission upshifts or downshifts to maintain engine rpm up to the maximum gear selected.

Automatic shifts are not recorded by IMS, however manual shifts are recorded. Automatic shift "Resume" will be programmed into the sequence if switch (A) is activated with IMS in LEARN mode.

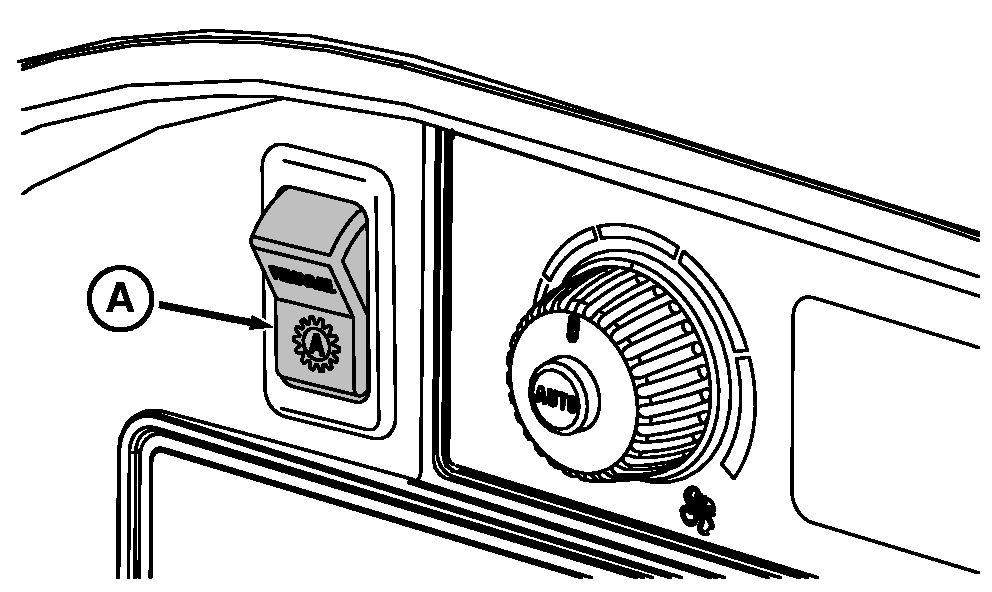

A-Resume Switch

OUO1011,0005375 -19-22MAR05-1/1
