Using Seven-Terminal Outlet

Outlet (A) is used to connect lights, turn signals, and remote electrical equipment on trailers or implements. Always use auxiliary light on towed implement when tractor rear signals and other lights are obscured.

NOTE: Matching plug is available through your John Deere dealer.

Terminal Function
1 Left Turn Light
2 Accessory
3 Ground
4 Right Turn Light
5 Left Tail Light
6 Brake
7 Right Tail Light

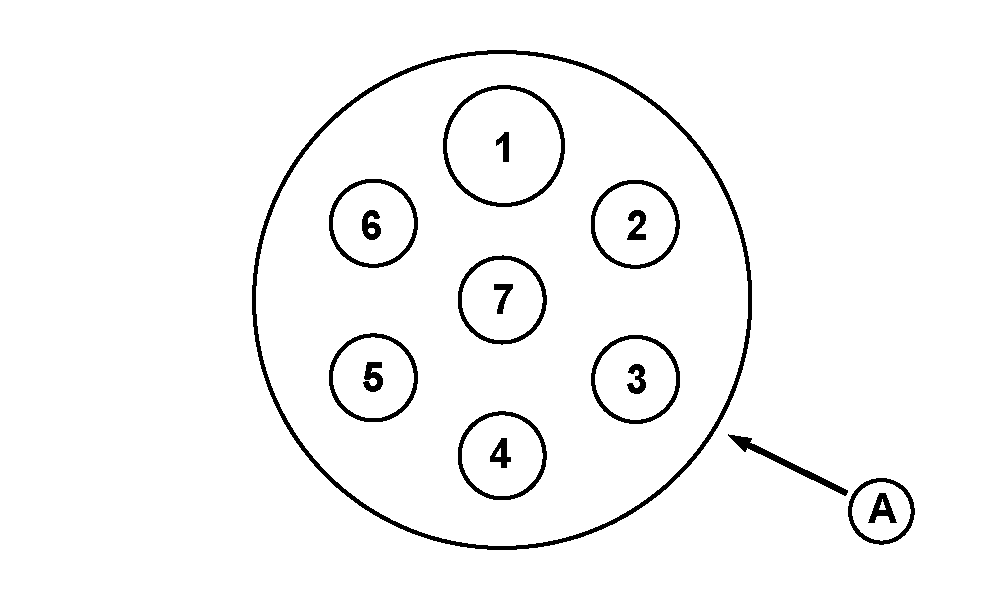

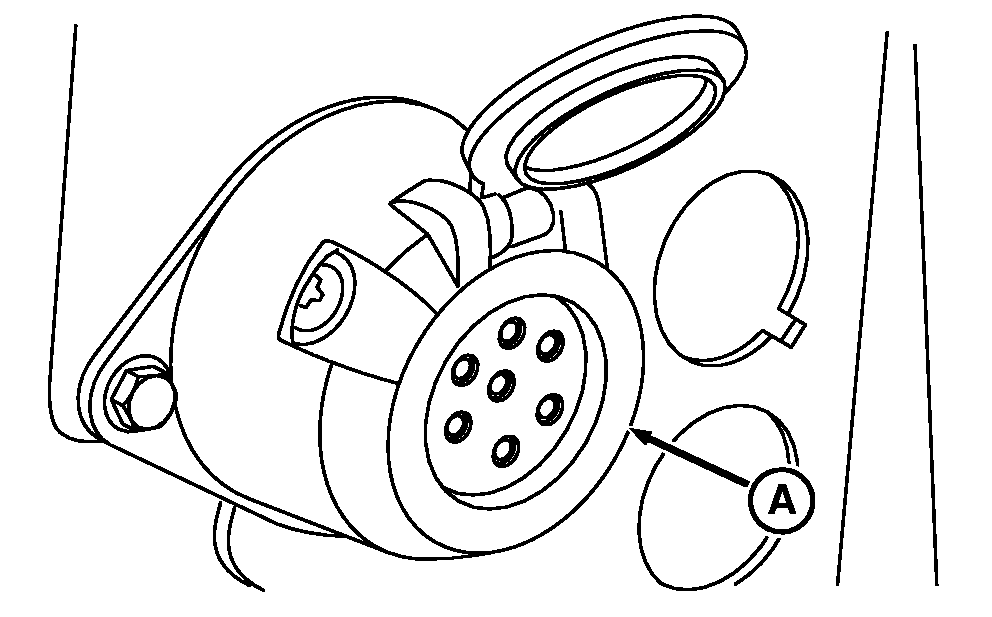

A-Seven Terminal Outlet
