Operating Cab Heat, Defrost and Air Conditioning (Standard Equipment)

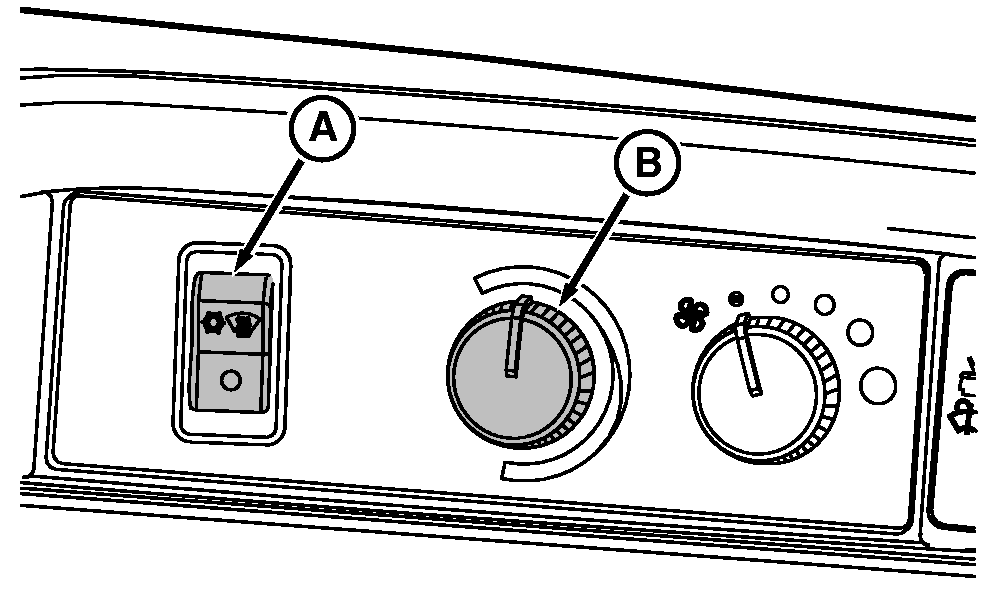

Push air conditioning switch (A) ON for cab cooling or defrosting. Leave switch OFF for heat.

Turn temperature control knob (B) to red zone for heating or blue zone for cooling.

A-Air Conditioning Switch
B-Temperature Control Knob

OUO1011,000539C -19-22MAR05-1/4

NOTE: Purge position is used for rapid cab cooldown.

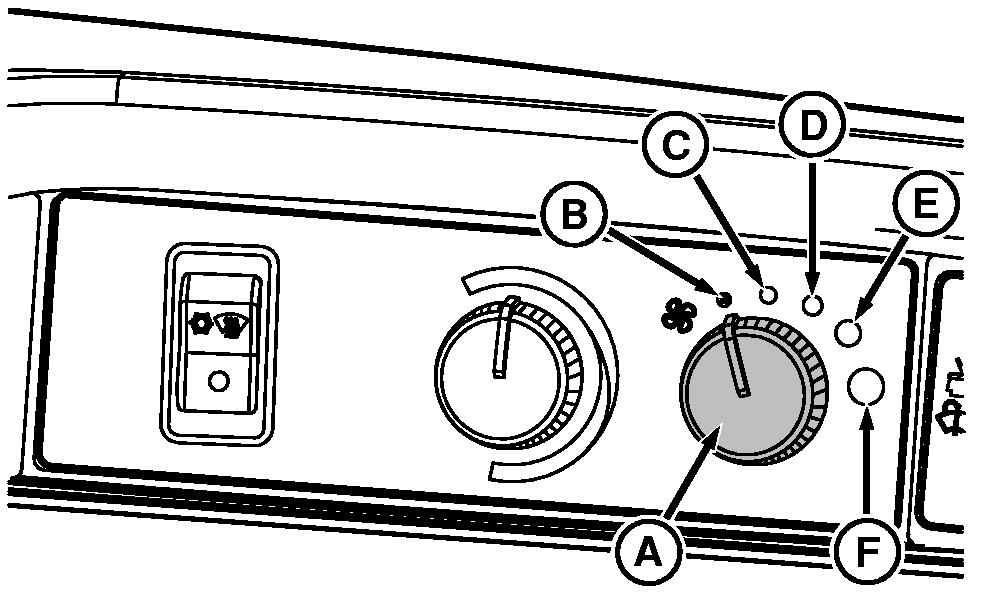

Turn fan speed control knob (A) to desired setting (B-F).

A-Fan Control Knob
B-Off
C-Low Speed
D-Medium Speed
E-High Speed
F-Purge

OUO1011,000539C -19-22MAR05-2/4

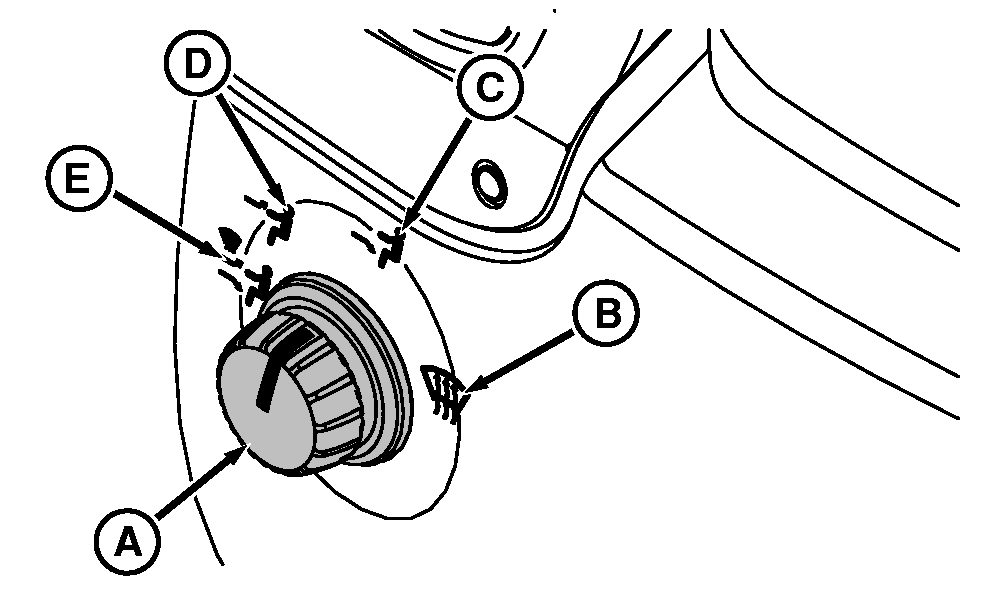

Turn air flow direction knob (A) for desired outlet (B-E).

A-Air Flow Direction
B-Windshield
C-Floor
D-Dash Vent
E-All

OUO1011,000539C -19-22MAR05-3/4

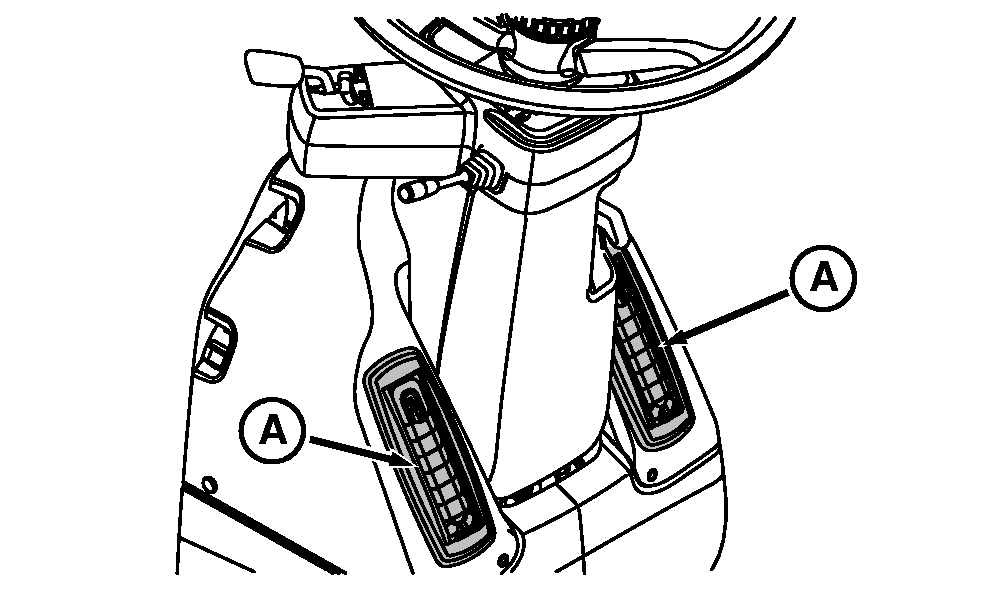

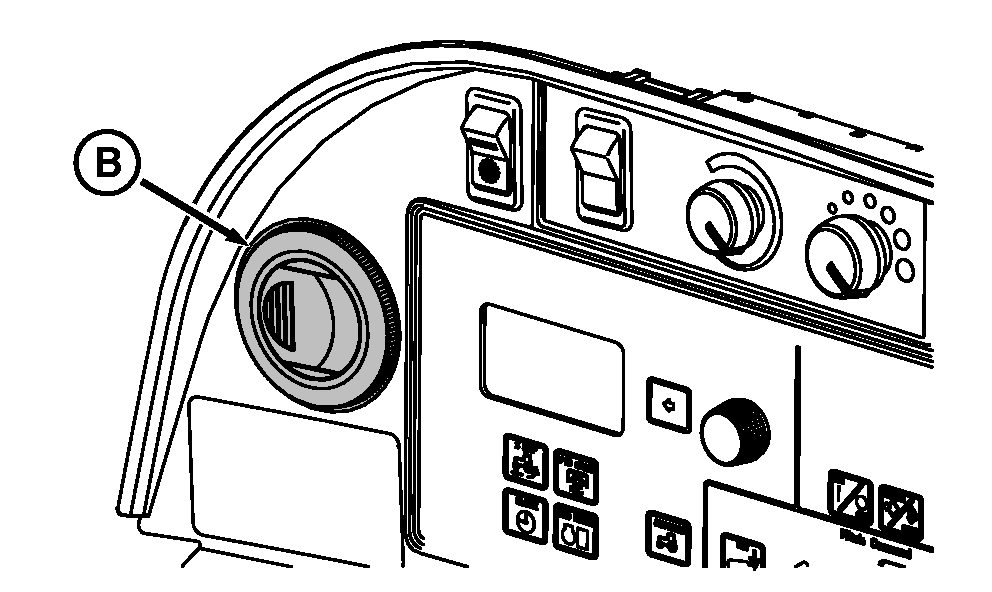

Louvers (A and B) in the front and side consoles are used to direct air flow to the windows for defrosting or at the operator for heating and cooling.

A-Front Console Louvers
B-Side Console Louver
