Using Mechanical Front-Wheel Drive (MFWD) (If Equipped)

causym CAUTION: Avoid personal injury or death. Reduce speed when driving on icy, wet, or graveled surfaces.

Ballast tractor correctly to avoid skidding and loss of steering control. Engage front-wheel drive by using ON mode, rather than AUTO mode for four-wheel braking.

IMPORTANT: Use only AUTO or BRAKE ASSIST positions when transporting tractor.

MFWD can be engaged and disengaged in all gears (forward and reverse) during operation and under full load. Switch (A) has three operating positions:

Center ON Position-Engages MFWD. Indicator light on corner post display will show engagement.

Top AUTO Position. Indicator on corner post display shows MFWD engagement. When in AUTO position, MFWD will operate as follows:

  • MFWD automatically disengages when pressing either brake pedal, or at speeds above 19 km/h (12 mph). MFWD automatically engages when speed falls below 18 km/h (11 mph).
  • MFWD engages when BOTH brake pedals are depressed.

Bottom BRAKE ASSIST Position-MFWD OFF except when BOTH brake pedals are depressed.

RW13093
RXA0068287

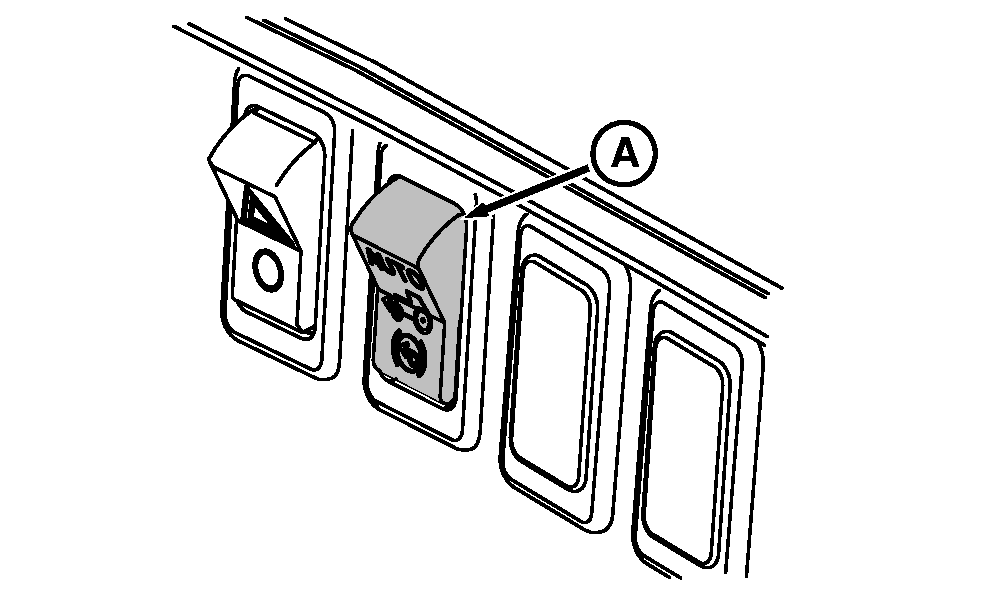

A-MFWD Switch

OUO1011,00053C7 -19-19MAY05-1/1
