Using Differential Lock

NOTE: Differential lock is standard equipment on rear axle.

When one wheel begins to slip, press switch (A) to engage differential lock. Indicator light on cornerpost display will come on. Disengage differential lock by pressing either brake pedal.

If so equipped, hydraulic differential lock on optional MFWD axle is also engaged with switch (A), and disengaged when either brake pedal is pressed.

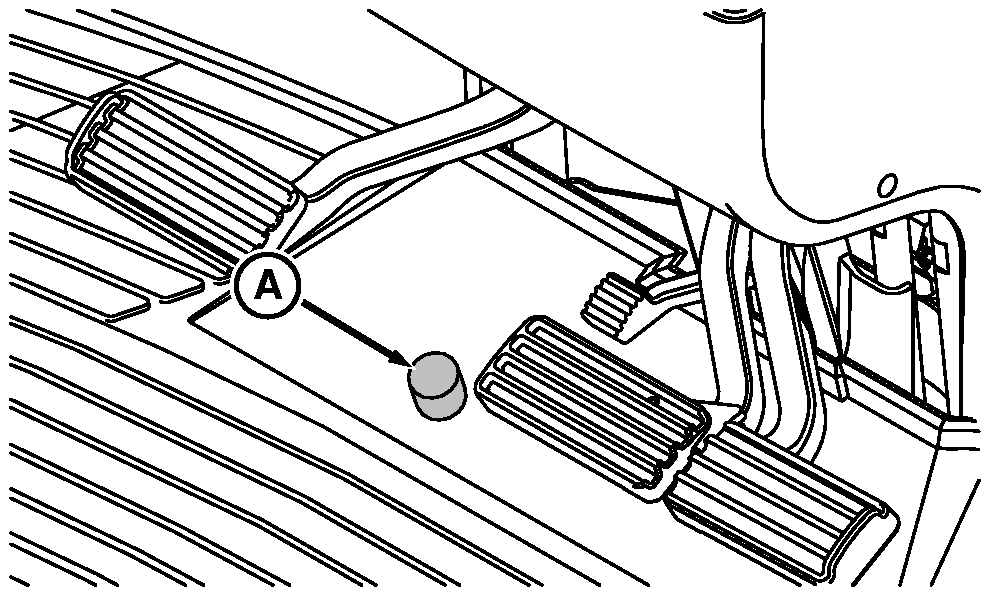

A-Differential Lock Switch

OUO1011,00053C8 -19-22MAR05-1/1
