Transmission-Hydraulic System Warm-Up-Lever Operated SCV

Avoid operating the tractor under load until transmission-hydraulic system has warmed up.

1. Install jumper hose (A) into SCV I coupler.

2. Shift transmission to PARK position and operate engine at 1600-1800 rpm.

3. Turn number one SCV selector knob to cylinder (automatic) detent position (B).

4. Turn number two SCV selector knob to motor (continuous) detent position (C).

5. Push SCV I and II levers to extend position.

6. Turn number one SCV metering valve (D) to full flow "rabbit" position. Adjust valve toward "turtle" position, to restrict flow until engine is loaded.

7. Return SCV I and II levers to neutral position after transmission-hydraulic system has warmed up.

RXA0068257
RW21867A

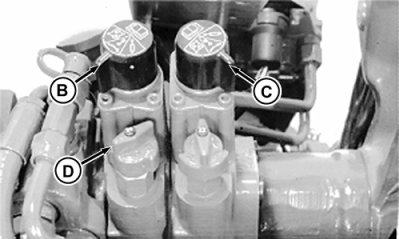

A-Jumper Hose
B-Detent Position
C-Detent Position
D-SCV Metering Valve

OUO1011,00053CC -19-22MAR05-1/1
