IMS Functions-Shifting PowrQuad-Plus (PQ+) and AutoQuad-Plus (AQ+) Transmissions

The transmission can be upshifted or downshifted with switches (A and B) during LEARN mode.

IMS functions only in forward gears.

Manually shifting while a sequence is executing will only cancel transmission control for the remainder of that sequence. Learned shift changes will remain stored.

IMS Functions-Auto Shift Resume (AutoQuad (AQ+) Only)

Automatic shift resume can also be programmed with IMS in LEARN mode.

When automatic shifting is active, the transmission upshifts or downshifts to maintain engine rpm up to the maximum gear selected.

Automatic shifts are not recorded by IMS, however manual shifts are recorded. Automatic shift "Resume" will be programmed into the sequence if switch (C) is activated with IMS in LEARN mode.

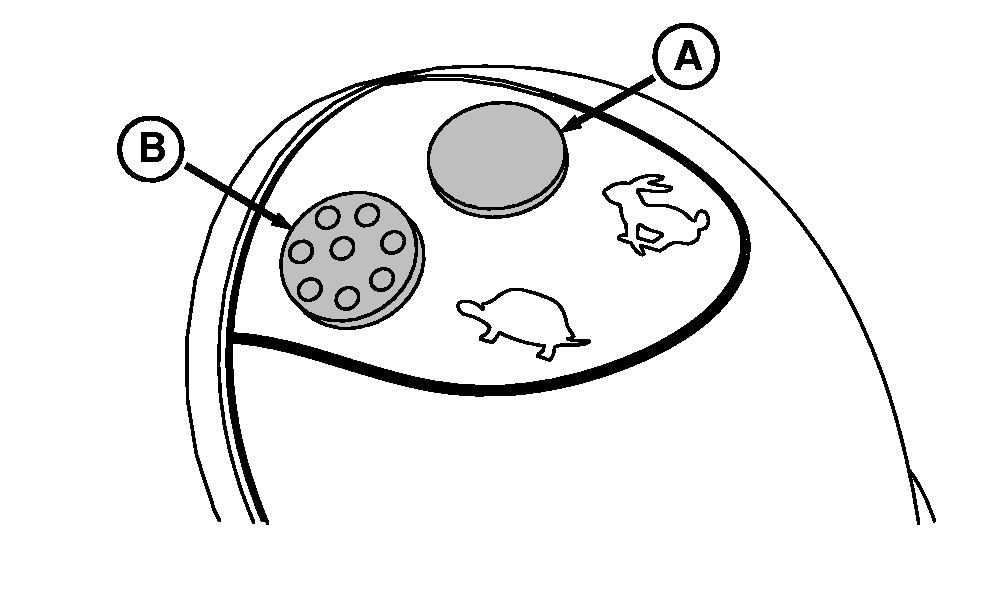

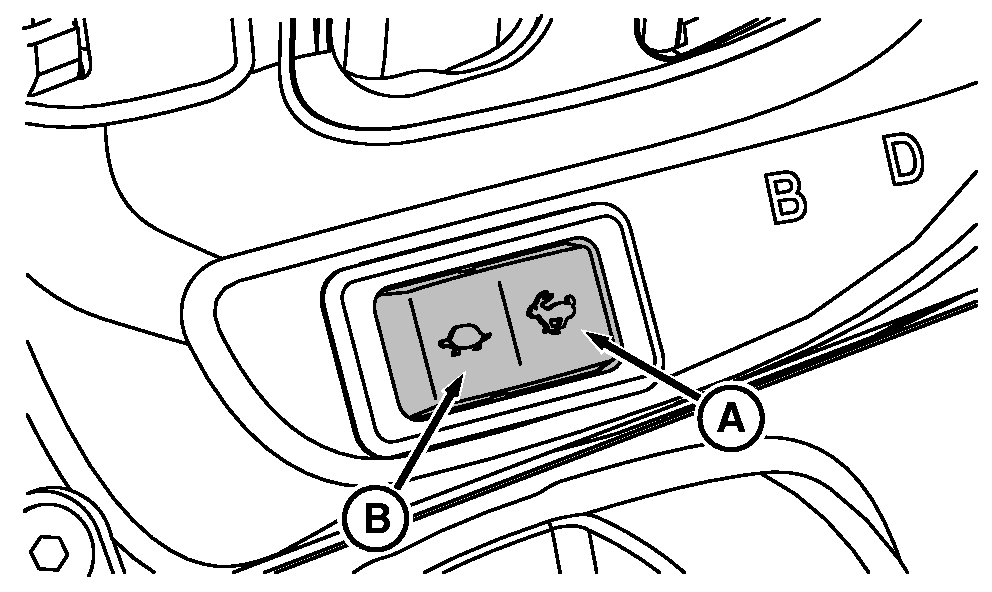

A-Upshift Switch
B-Downshift Switch
C-Auto Shift Resume (AQ+ Only)

OUO1011,00053DF -19-13JUL05-1/1
