Identifying Hitch Related Controls and Switches

RXA0082724

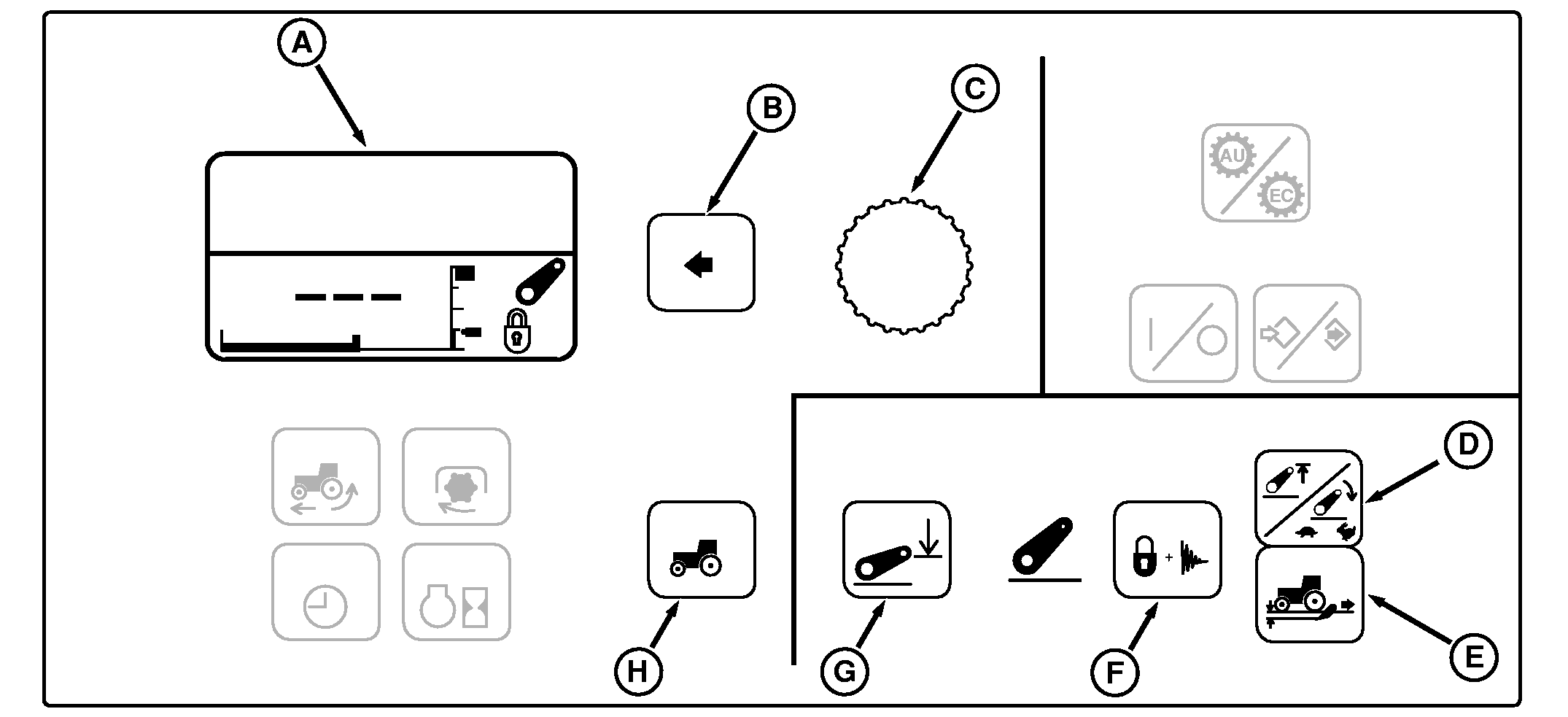

CommandCenter Panel

Lever (I) is used to raise and lower hitch.


A-Split-Screen Display
B-Select Switch
C-Command Dial
D-Height/Rate Switch
E-Load/Depth Switch
F-Lock/Damping Switch
G-Depth Set Switch
H-Settings Switch
I-Hitch Command Lever

RXA0070269

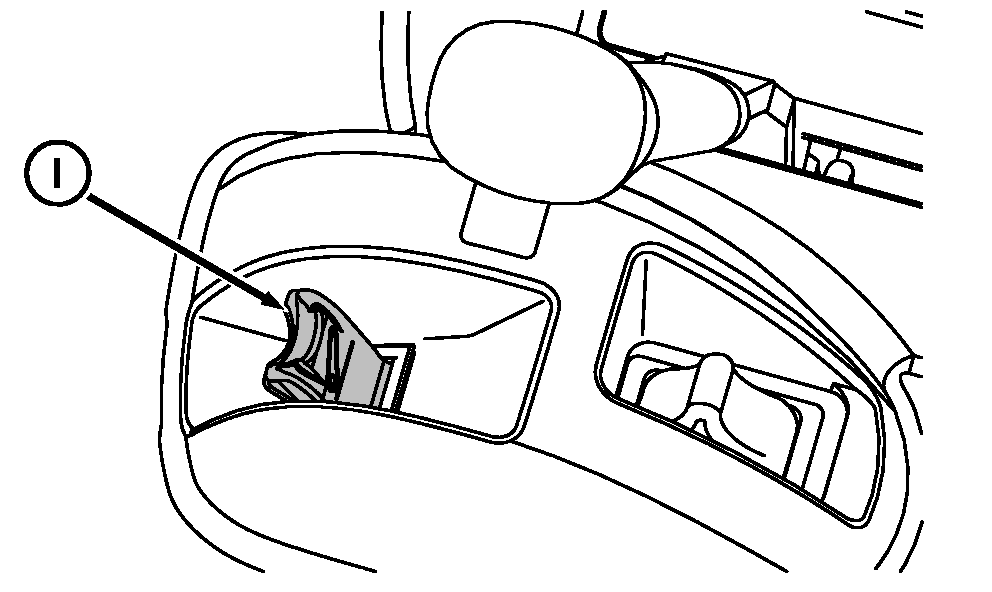

Right-Hand Console

RXA0070270

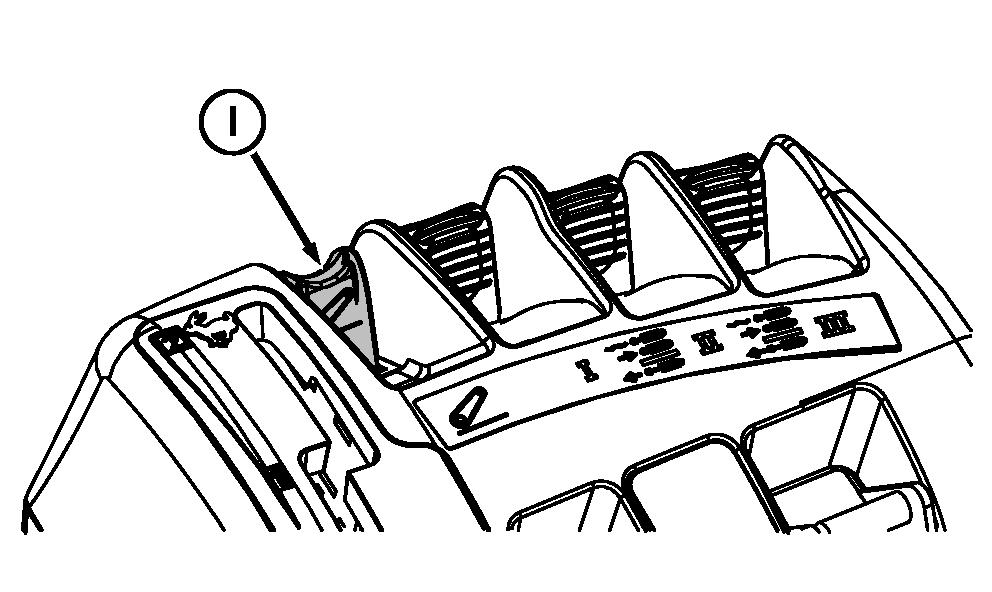

CommandArm

OUO6078,0005136 -19-28JUL05-1/1
