Eight Position MFWD Wheel Settings

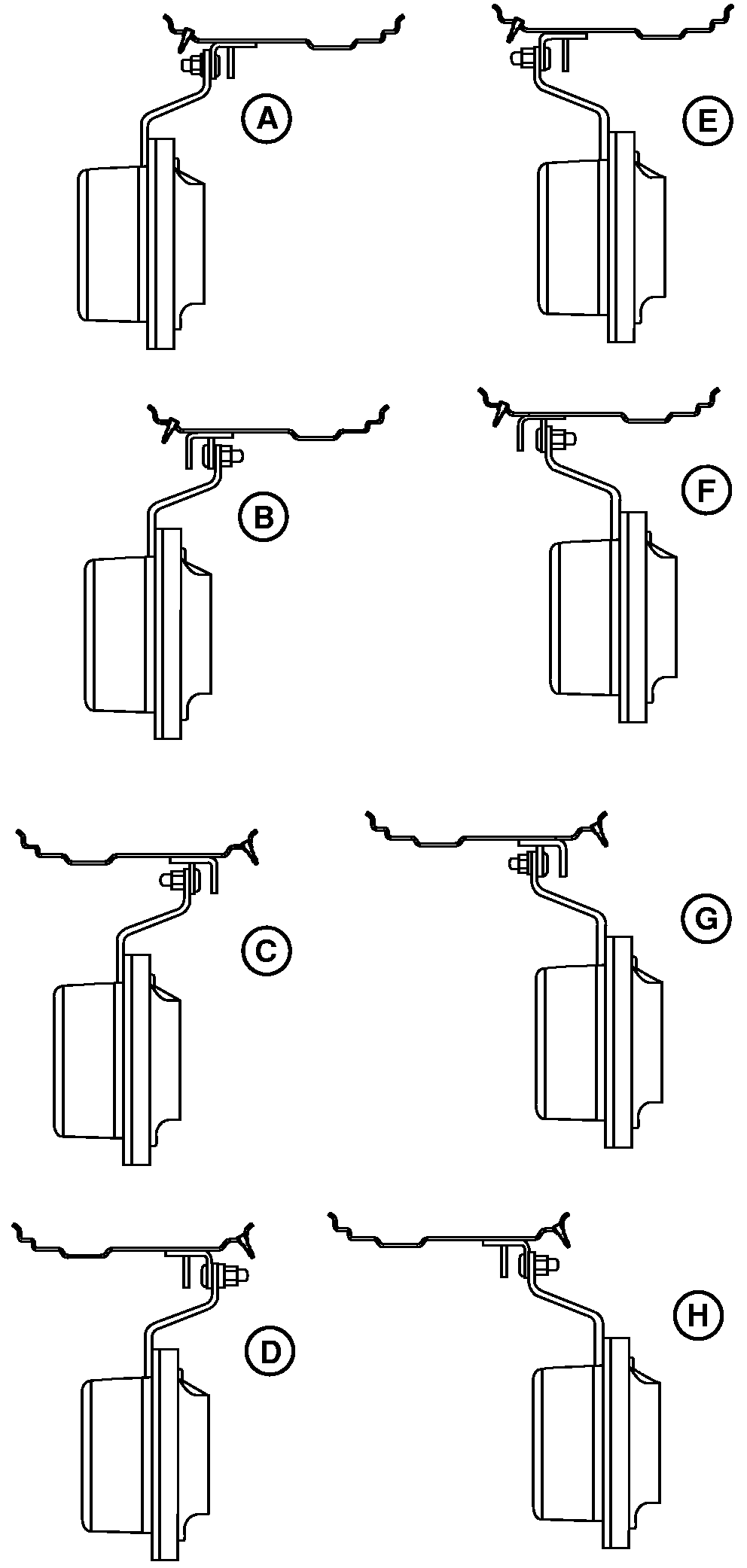

NOTE: (A-H) are used for all tires 540 mm (20.8 in.) or less.

Tread settings are measured at bottom center line of tire.

Use diagram at the right to adjust rim and disk, to a desired tread setting for all tires 540 mm (20.8 in.) or less.

IMPORTANT: After setting wheel spacing, tighten rim-to-disk bolts to 300 N·m (225 lb-ft) and disk-to-hub nuts to 600 N·m (445 lb-ft).

Retighten bolts after working 3 HOURS , 10 HOURS , and DAILY for the first week of operation and then every 250 hours.

IMPORTANT: Carefully follow procedure for tightening wheel bolts. Failure to do so could lead to wheel hub damage.

Adjust fenders and steering stops as required using the tables and diagrams on the following pages.

OURX935,00000AC -19-17NOV05-1/2

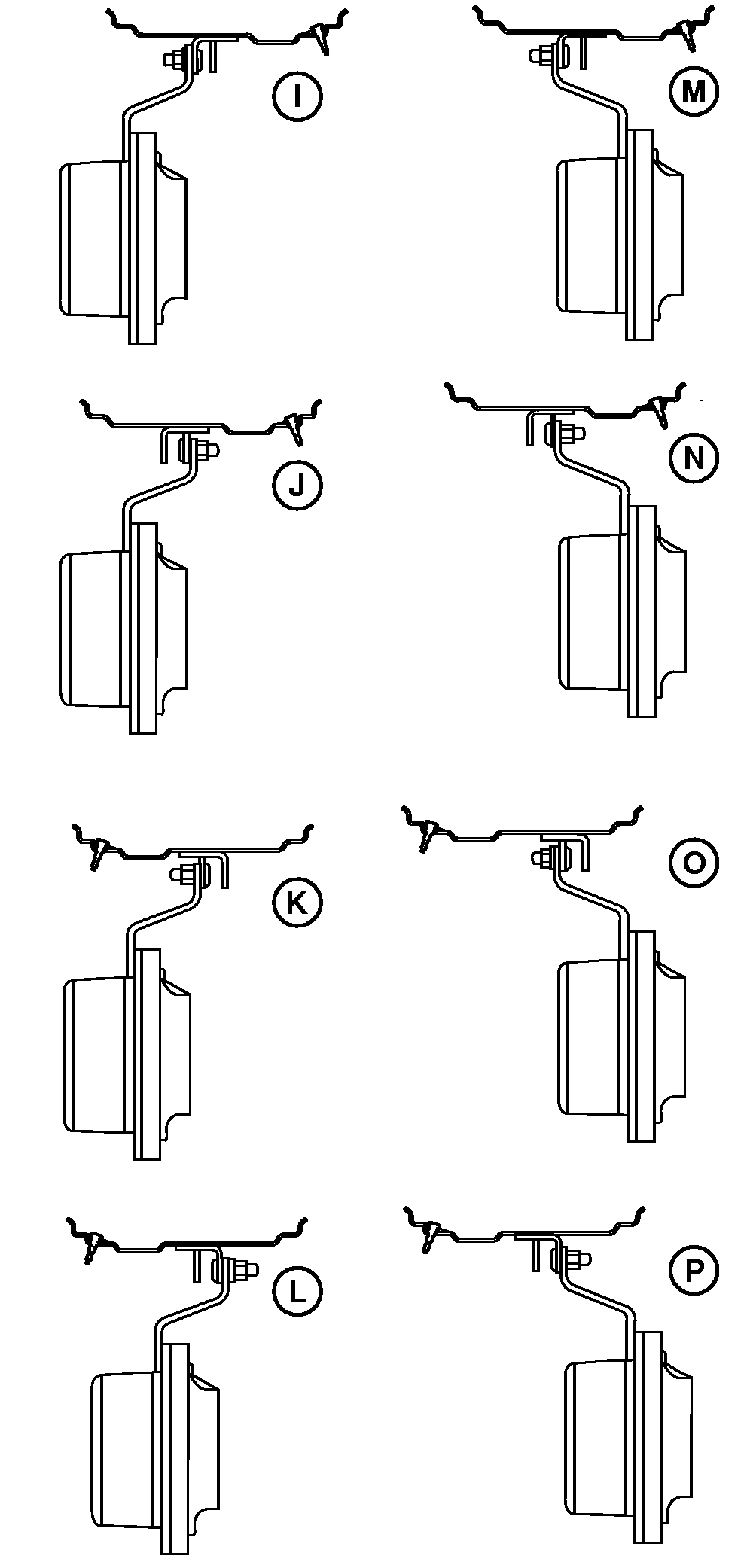

NOTE: (I-P) are used for 600/65R28 and 600/70R30 tires.

Tread settings are measured at bottom center line of tire.

Use diagram at the right to adjust rim and disk, to a desired tread setting for 600/65R28 and 600/70R30 tires.

IMPORTANT: After setting wheel spacing, tighten rim-to-disk bolts to 300 N·m (225 lb-ft) and disk-to-hub nuts to 600 N·m (445 lb-ft).

Retighten bolts after working 3 HOURS , 10 HOURS , and DAILY for the first week of operation and then every 250 hours.

IMPORTANT: Carefully follow procedure for tightening wheel bolts. Failure to do so could lead to wheel hub damage.

Adjust fenders and steering stops as required using the tables and diagrams on the following pages.

OURX935,00000AC -19-17NOV05-2/2
