Replacing Fuel Filter - 8.1 L Engine

NOTE: Use a catch pan when draining fuel or when removing filter from the tractor.

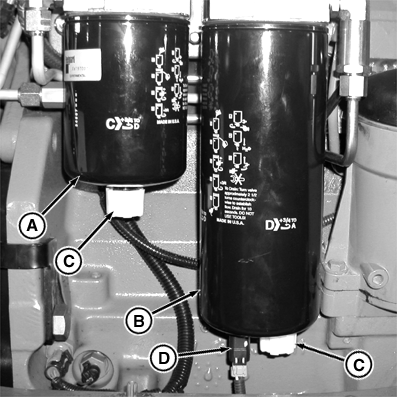

2. Drain fuel from secondary filter (A) and primary filter (B) by opening drain valves (C).

3. Close drains.

4. Unplug connector (D) to water-in-fuel sensor.

5. Remove filters from tractor. Additional fuel will drain from filter housings.

6. Install filler cup (A) on new filters (B).

A-Secondary Filter
B-Primary Filter
C-Drain Valve
D-Water-In-Fuel Sensor

OURX986,00001C3 -19-22MAR05-1/3

IMPORTANT: Avoid fuel system contamination. Do not pour fuel directly into filter without filler cup installed. Injection pump could seize.

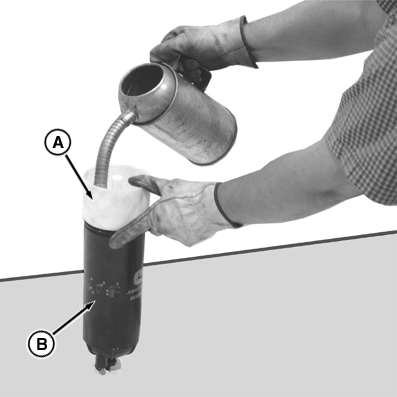

7. Fill filter with fuel. Filter does not have to be completely full.

A -Filler Cup
B-Fuel Filter

OURX986,00001C3 -19-22MAR05-2/3

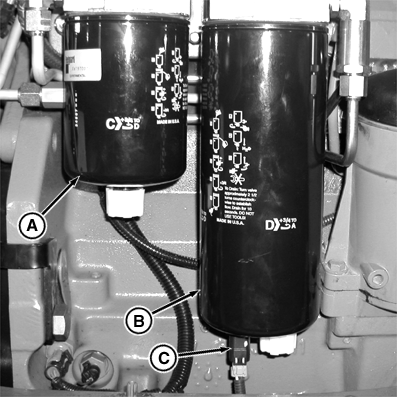

9. Install new secondary filter (A) and primary filter (B) on tractor. Hand tighten plus an additional quarter turn.

10. Connect sensor (C).

11. Start tractor.

A -Secondary Filter
B-Primary Filter
C-Water-In-Fuel Sensor

OURX986,00001C3 -19-22MAR05-3/3
