Restarting Engine That Has Run Out Of Fuel

If engine has run out of fuel, the system must be primed.

1. Fill fuel tank.

IMPORTANT: Prefill cup must be used when filling fuel filters, to make sure fuel is being filtered.

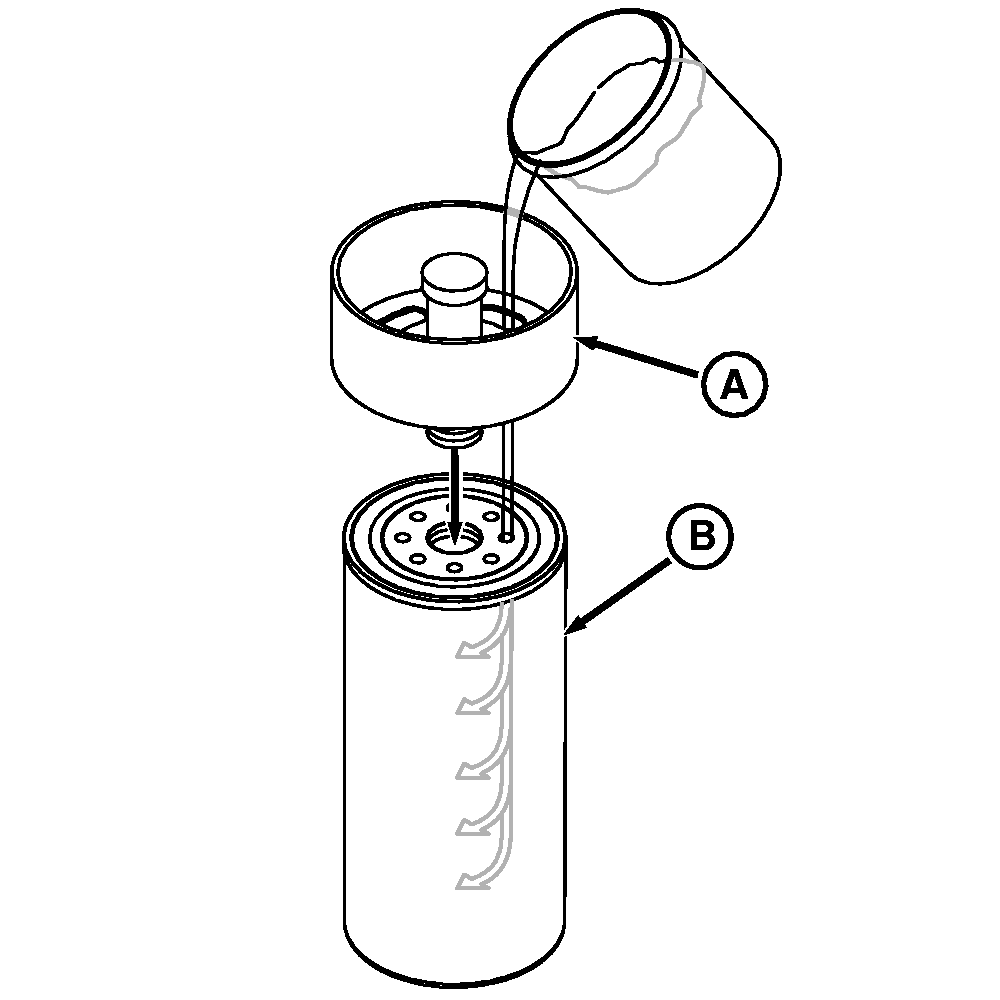

2. Remove fuel filters and connect prefill cup (A) to filter (B). Fill filters with fuel.

3. Bleed air from system. See BLEEDING FUEL SYSTEM, in Maintenance-Fuel System section of this manual.


A-Prefill Cup
B-Fuel Filter
