Headlight/Floodlight Identification and CommandCenter Indicators

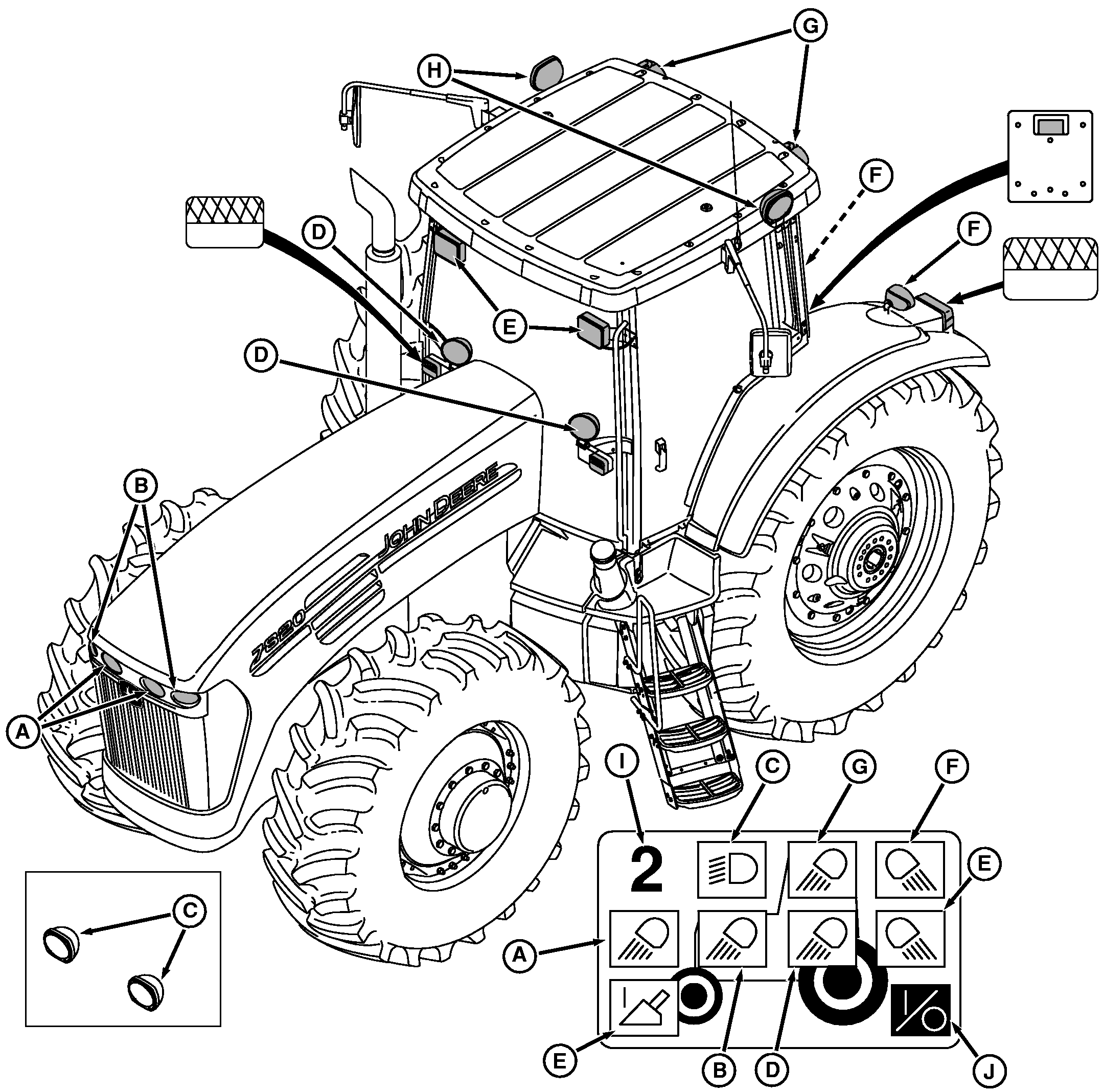

RXA0073143

Field 2 Position Shown with ALL Lights ON


A-Work Lights (Standard or HID-Xenon)
B-Floodlights, Front Outer (Standard or HID-Xenon)


C-Driving Lights, High/Low Beam (See Note)
D-Floodlights, Cab Beltline
E-Loader Lights, High/Low Beam (If Equipped)


F-Floodlights, Fender Rear (Standard or HID-Xenon)
G-Floodlight, Cab Roof Rear
H-Floodlights, Cab Roof Side (If Equipped)


I-Indicator, Switch Position
J-Indicator, ON/OFF

OURX986,00001DD -19-22MAR05-1/2


NOTE: Standard high/low beam driving lights (C) are installed on weight bracket or front hitch bracket (if equipped).
