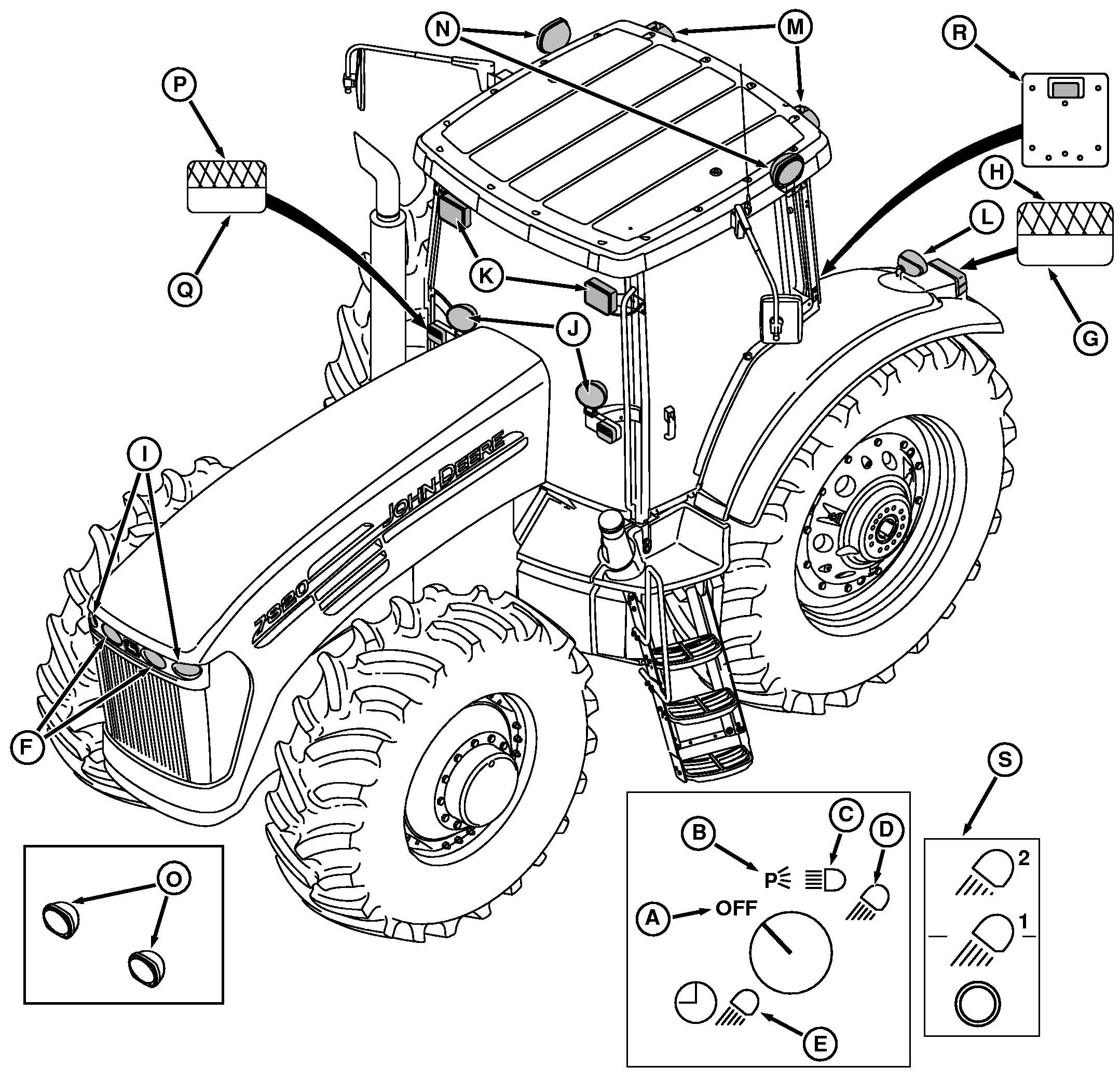

A-OFF Position
B-Park Position
C-Road Position
D-Field Position
E-Delayed Shutdown Position (If Equipped)
F-Work Lights (Standard or HID-Xenon)

G-Red Tail Lights
H-Amber Hazard Lights-Rear
I-Floodlights, Front Outer (Standard or HID-Xenon)
J-Floodlights, Cab Beltline
K-Loader Lights, High/Low Beam (If Equipped)

L-Floodlights, Fender Rear (Standard or HID-Xenon)
M-Floodlights, Cab Roof Rear
N-Floodlights, Cab Roof Side (If Equipped)
O-Driving Lights, High/Low Beam

P-Amber Hazard Lights-Front
Q-Clearance Lights
R-License Plate Light
S-Floodlight Switch

OURX986,00001DF -19-22MAR05-1/2

CAUTION: Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim headlights to low-beam for oncoming vehicles. Avoid using floodlights which could blind or confuse other drivers.

Standard light switch has four positions (A-D) and operates regardless of key position. With optional Egress lighting, switch has five positions; the same four as standard switch, plus delayed shut-down position (E).

Turns all lights off.

Turns on front clearance lights (P), red tail lights (G) and license plate light (Q).

Turns on high/low beam driving lights (N), front clearance lights (P) and red tail lights (G).

NOTE: Refer to PROGRAMMING FLOODLIGHTS for set-up information.

Turns on clear-lens lighting (F, I-N) programmed for each Field position.

See USING DELAYED EGRESS LIGHTING (IF EQUIPPED) for operating information.

To prevent battery discharge if headlights or working lights are left on accidentally after shutting off engine and removing ignition key, the electrical system will automatically start following sequence:

• After 30 minutes have elapsed, lights will turn on and off 5 times
• After 5th time, lights will turn back on and stay lit for about 60 seconds
• After 60 seconds, lights will go off and stay off to prevent complete battery discharge

OURX986,00001DF -19-22MAR05-2/2
