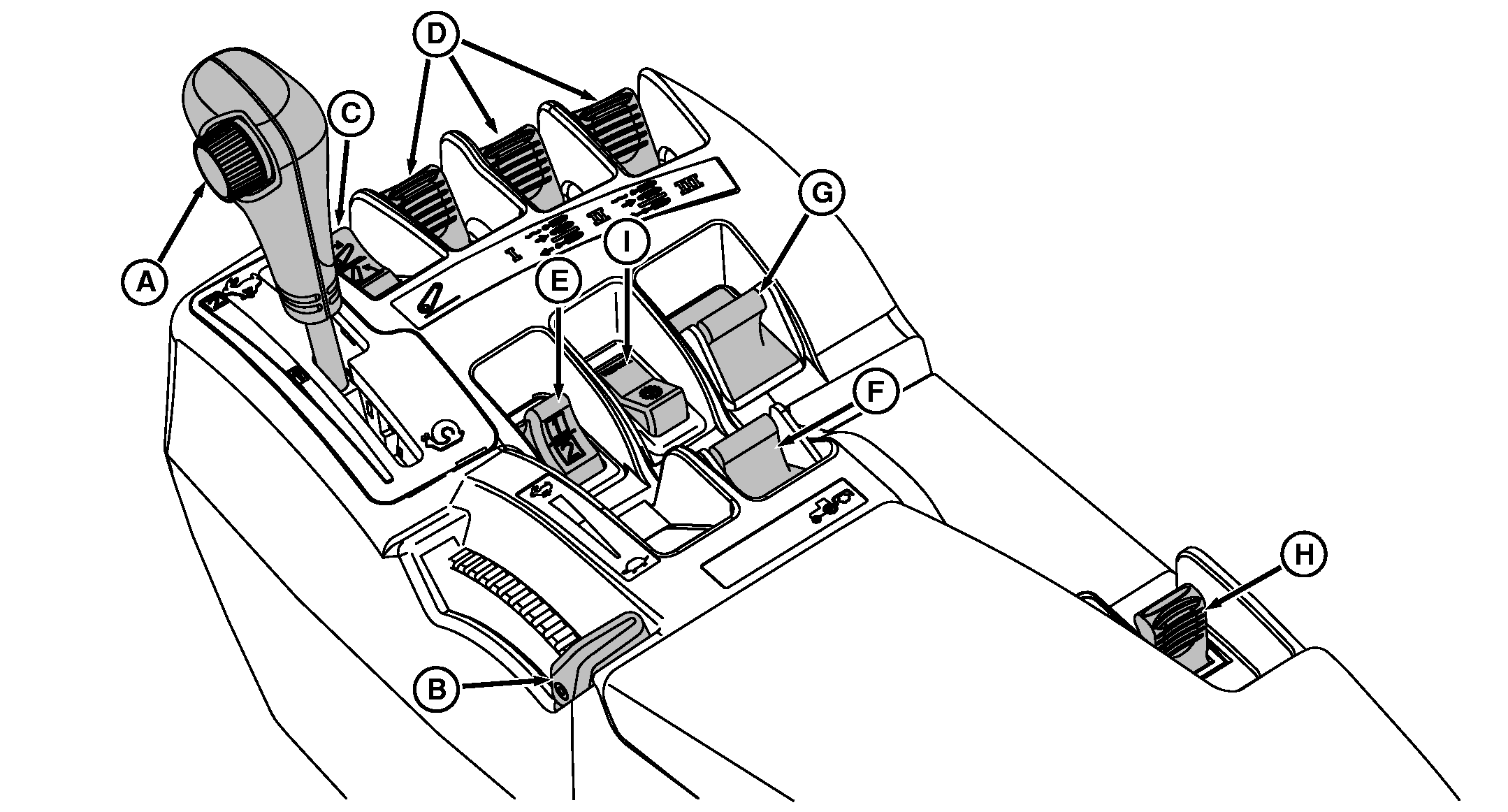

A-Speed Control Lever
B-Hand Throttle
C-Hitch Command Lever
D-Hydraulic Control Levers (SCV's I-III) (See Hydraulic System-TouchSet Controls)
|
E-IMS Sequence Switch (See IMS section)
F-Rear PTO Switch
G-Front PTO Switch (If Equipped)
|
H-Hydraulic Control Lever (SCV IV) (See Hydraulic System-TouchSet Controls) (If Equipped)
|
I-AutoTrac Resume Switch (If Equipped)
|
