Operating Turn Signals and High/Low Beam

Push lever (A) forward for a right turn, or pull rearward for a left turn. Return lever immediately to center position. Turn signal light continues to flash for additional 50 m (164 ft) of tractor travel, then switches off automatically.

CAUTION: Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim headlights to low-beam for oncoming vehicles.

Push lever (A) down to activate high beam headlights; high beam indicator will come on. Pull lever into center position to operate low beam. Pull lever up and release to flash-to-pass high beams.

Dim headlights for oncoming vehicles.

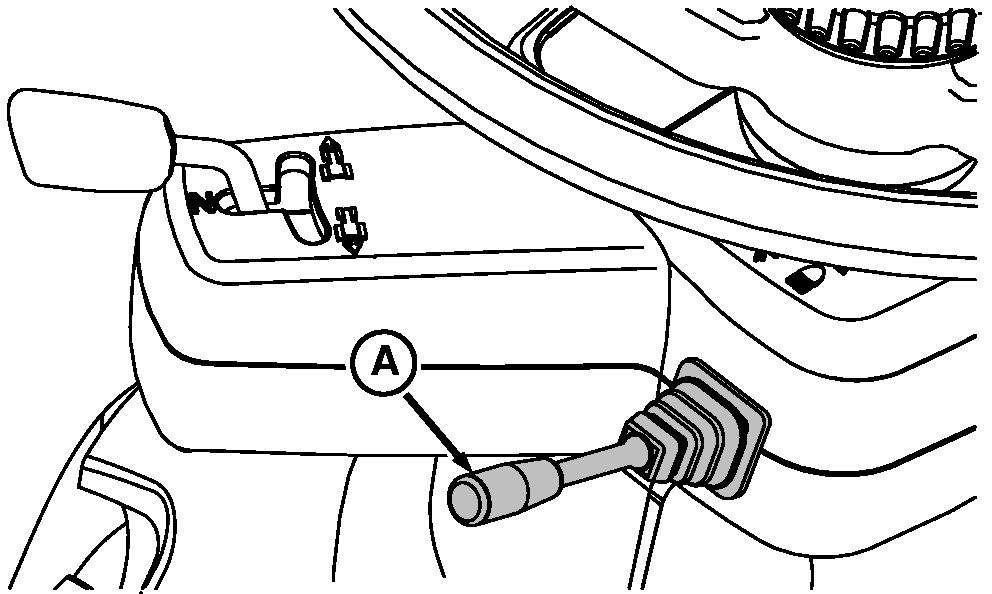

A-Turn Signal Lever

OURX986,00002BB -19-16AUG05-1/1
