Filling Fuel Tank

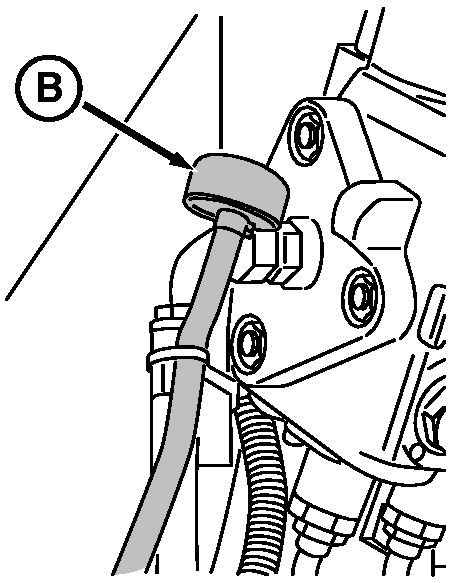

Always stop engine before refueling machine. Fill fuel tank outdoors. Prevent fires by keeping machine clean of accumulated trash, grease, and debris. Always clean up spilled fuel. NOTE: Information indicator on corner post display will light when low fuel signal is received. Approximate time before the tractor runs out of fuel is 45-75 minutes. Fuel tank cap (A) has a locking device to allow easy installation of a padlock. Fill fuel tank at end of each day. This prevents condensation in tank as moist air cools. Fuel tanks are vented through a fuel tank vent filter (B) located below rear window behind or on left-hand side of rear SCV assembly. |
|
CAUTION:
Handle fuel with care: It is highly flammable. Do not refuel the machine while smoking or when near open flame or sparks.
OURX986,00002BF -19-22MAR05-1/1 |
