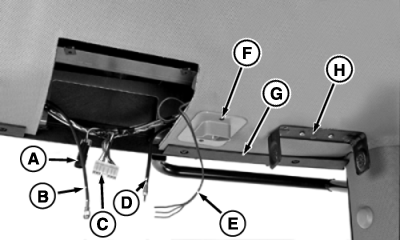

A-Rotary Beacon Connector
B-Mobile Radio Antenna

C-AM/FM Connector
D-AM/FM Antenna

E-Mobile Radio Power Leads
F-Console Light

G-Roof Trim
H-Mobile Radio Bracket

CAUTION: Under no circumstances should mobile radio antenna be mounted to rear of cab or antenna cable be routed near harness for electrical system controllers or near operator controls. Failure to follow these precautions could expose operator to radio frequency energy levels higher than recommended by American National Standards Institute (ANSI) and/or could cause undesirable performance of electronically controlled systems.

CAUTION: Prevent possible personal injury. Disconnect battery ground cable before any electrical repair.

IMPORTANT: Only tractors ordered mobile radio ready from factory have mounting plate and antenna cable and mount included. For tractors not ordered mobile radio ready, see your John Deere dealer. For tractors that are mobile radio ready, follow installation steps below.

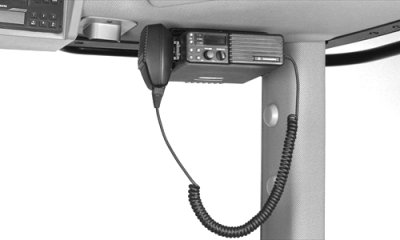

Install mobile radio as shown.

Another mounting choice is to use the two studs on right rear cab post.

Remove AM/FM radio bezel to gain access to power leads (E) and antenna cable (B).

Power leads are pre-installed, locate red wire #272 for switch operation. Should radio operation require battery power at all times, use red wire #262. black wire #010 is ground.

Connect antenna cable to radio. Remove rain cap on front left corner of outer roof and attach non-ground plane type antenna to the mount. Antenna mount is 1-1/8 in. - 24 thread. The cable connector for radio is a PL259 type. Adapters are available through radio equipment suppliers.

NOTE: Antenna should be trimmed to appropriate variable standing wave ratio (VSWR). A professional installer is recommended.

Reinstall AM/FM radio bezel after mobile radio cable and wires are routed.

RW24911,0000185 -19-27MAY05-1/1
