Using Electric Rear View Mirrors (If Equipped)

Mirrors can be electrically adjusted up-and-down, and side-to-side, but must be manually adjusted away from the cab.

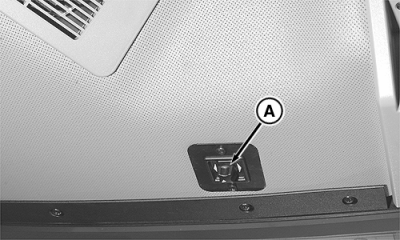

Push switch (A) in the direction desired to adjust rear view mirrors (B) (right hand mirror shown).

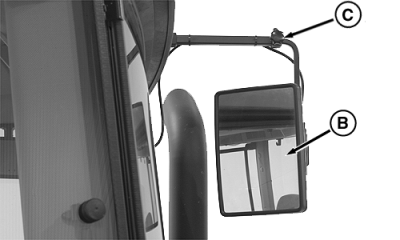

Loosen knob (C) to adjust distance of the mirror from cab (right hand mirror shown).


A-Switch
B-Rear View Mirror
C-Knob

RXA0053037
RXA0053034

RX15494,00000C2CONV1 -19-11JUL05-1/1
