Installing Rear Drive Wheel To Cast Hub

causym CAUTION: Avoid the possibility of personal injury. Failure to follow torquing sequence and procedure will result in damage to equipment and may result in personal injury. Wheel bolts are critical and require repeated torquing.

NOTE: The wheel rim (A) has one tight fit hole smaller than the other holes. One slot fit hole is 180° from the tight fit hole, for improved wheel centering.

1. Install and hand tighten bolt in the tight fit hole (B).

2. Install and hand tighten bolt in the slot fit hole (C).

3. Install and hand tighten remaining bolts.

4. Tighten all bolts until bolts maintain torque according to specifications.

Specification

Wheel Bolts -Torque 600 N·m (445 lb-ft)

5. Drive tractor 100 meters (100 yd) and retighten bolts.

6. Tighten again at 3 HOURS , 10 HOURS , and DAILY for the first week of operation and then every 250 hours.

IMPORTANT: Carefully follow procedure for retightening wheel bolts. Failure to do so could lead to wheel hub damage.

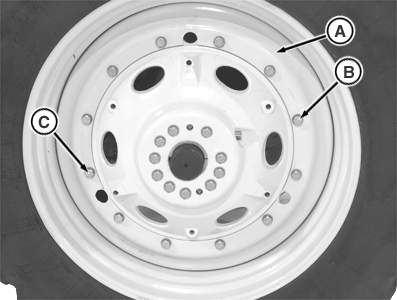

RXA0056891

Heavy Duty Cast Hub Shown


A-Wheel Rim
B-Tight Fit Hole
C-Loose Fit Hole

RX15494,0000149 -19-01DEC05-1/1
