Adjusting ComfortCommand Seat (If Equipped)

IMPORTANT: If electrohydraulic control lever is installed on CommandARM ™ , lever may contact right-hand console if seat is placed in full right-hand swivel position. Check seat swivel as well as seat height and fore-aft adjustment to avoid this contact.

Lumbar Support Adjustment: Rotate lever (A) to any of five positions.

Weight and Height Adjustment: Turn key to ON position. Press lower portion of switch (D) to lower or upper portion to raise the seat to adjust for individual weight and height.

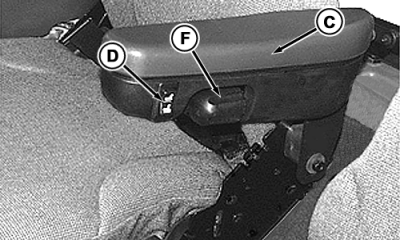

Armrest Height Adjustment: Press button (E) or turn handle (F) to adjust armrest height.

Backrest Angle: Pull up handle (G) and lean on backrest to recline seat to desired angle.

Seat Swivel: Lift up on handle (H) to detent position to allow seat to swivel. Push down on handle to lock seat in position.

Fore-Aft Seat Position: Pull up on handle (I) to allow the seat to slide forward or backward.

Fore-Aft Movement Lock: Push down on handle (L) to allow seat to move fore and aft. Pull up to prevent fore-aft movement.

Damping: Handle (J) infinitely adjusts suspension shock. Moving lever to farthest down position provides the firmest ride; farthest up position provides softest ride.

Lateral Movement Lock: Push down on handle (K) to allow seat to move sideways. Pull up on handle to lock seat in position.

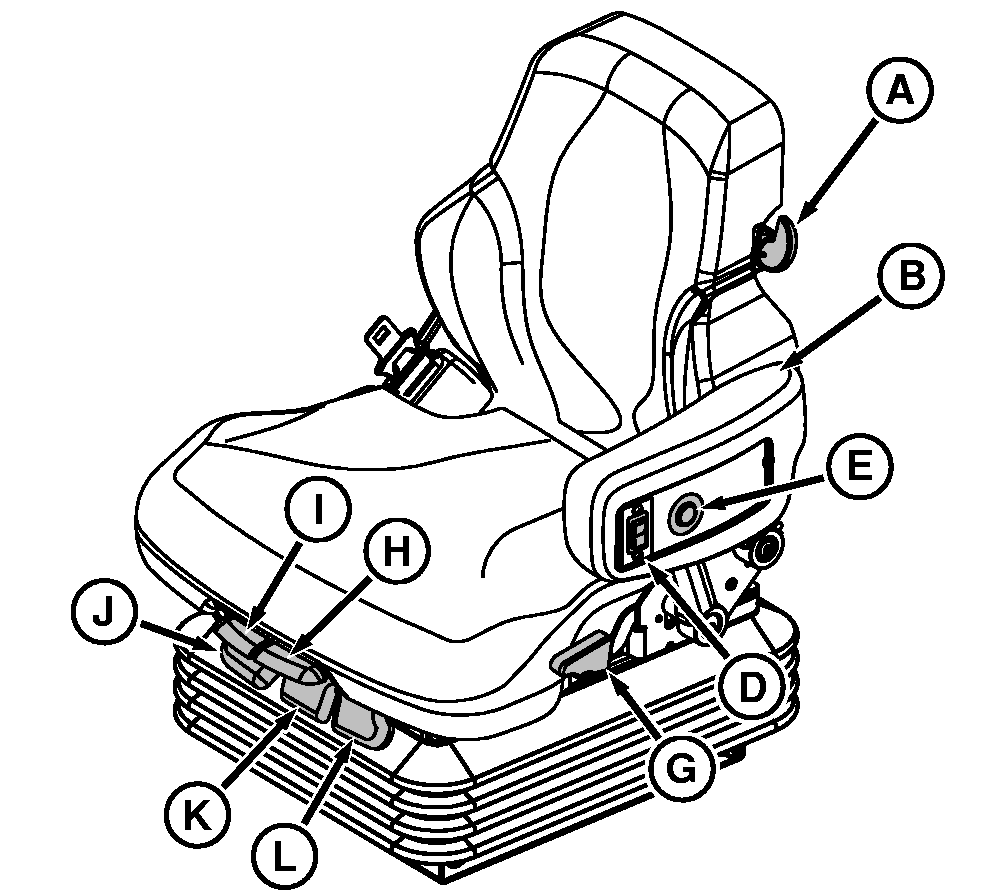

A-Lumbar Support
B-Fold-Down Armrest
C-Flip-Up Armrest
D-Seat Height Adjustment
E-Armrest Adjustment
F-Armrest Adjustment
G-Backrest Angle
H-Seat Swivel
I-Fore-Aft Adjustment
J-Suspension Shock Damping
K-Lateral Movement Lock
L-Fore-Aft Movement Lock
