Two-Wheel Drive Front Axle Adjustment

IMPORTANT: Do not place jack under engine oil pan.

1. Jack up front end of tractor.

2. Remove bolts (A) from tie rod and bolts (B) from axle.

3. Slide axle knee to desired position and tighten bolts (B) to 600 N·m (445 lb-ft).

4. Install bolts in tie rod making sure tie rod is changed same amount as axle.

5. Adjust other side using the same procedure. Both sides should normally have the same spacing.

6. Check toe-in and adjust as required.

NOTE: Alternate tread settings may require additional hose length be pulled from frame rails. Excess hose length should be pulled back into frame area when adjusting tread settings inward.

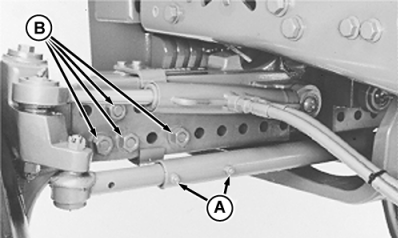

A-Tie Rod Bolts
B-Axle Bolts

AG,RX15494,1769 -19-31AUG99-1/1
