Two-Wheel Drive Front Axle Toe-In Checking

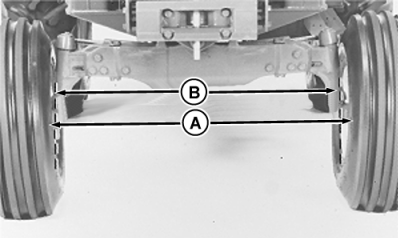

1. Measure distance (A) between tires at hub level in front of axle. Mark the point that is measured.

2. Move tractor back about 1 m (3 ft), so mark is at hub level behind the axle. Measure distance (B) between tires behind axle. Front measurement should be 3-9 mm (1/8-3/8 in.) less than rear measurement.


A-Distance In Front Of Axle
B-Distance Behind Axle
