Tread Settings -MFWD Hi-Crop Tractors
|
|

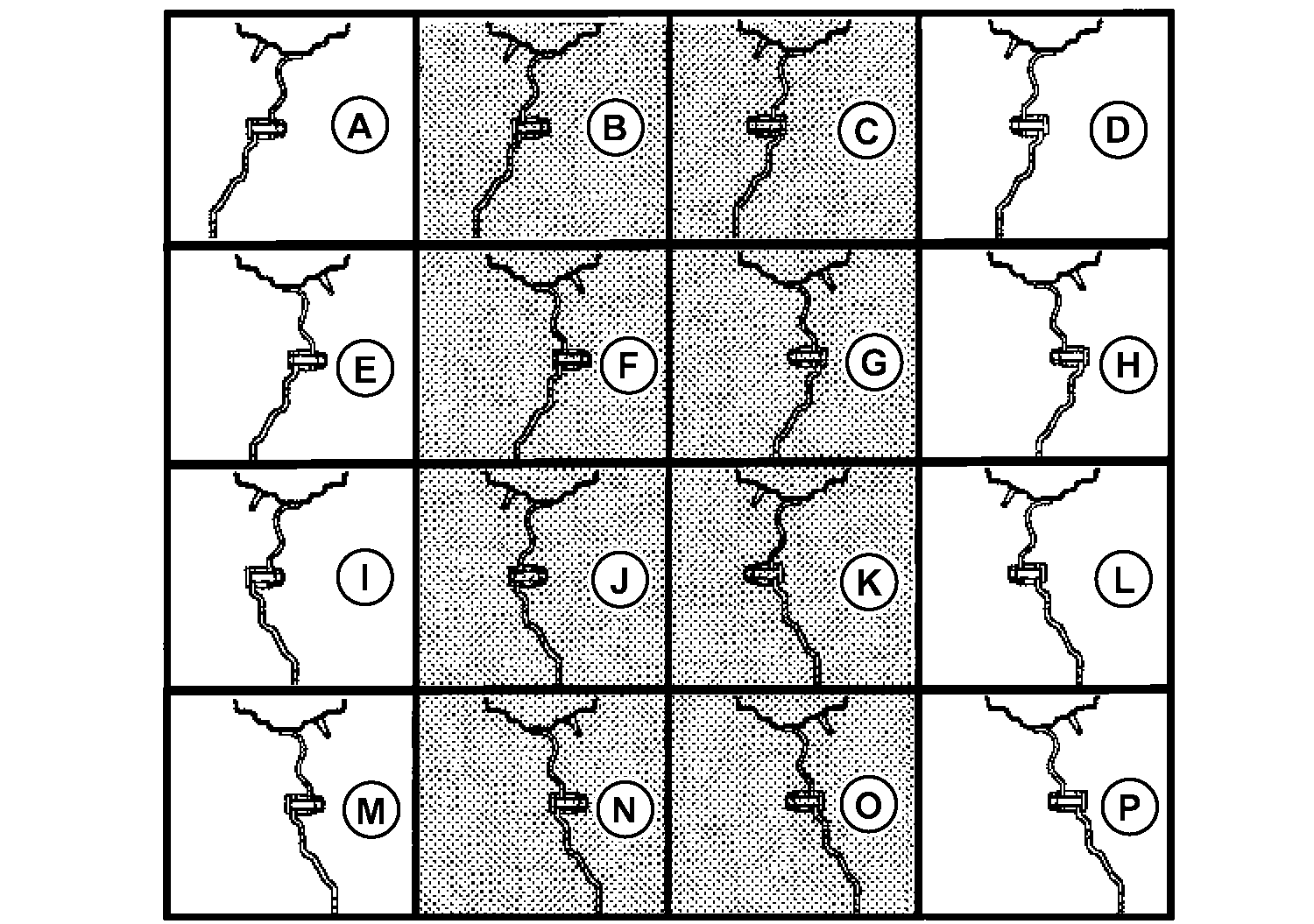

NOTE: Tread settings are measured at bottom centerline of tire. Positions in the shaded areas are not used. Wheel, as viewed from behind left front tire. Use diagram as a guide to adjust the rim and disk to desired tread setting with 320/90 tires. |
IMPORTANT: After setting wheel spacing, tighten rim-to-disk bolts and disk-to-hub nuts to 600 N·m (445 lb-ft). Adjust fenders and steering stops as required. |
| Valve Stem Out | Valve Stem In | Valve Stem Out | Valve Stem In | ||
|---|---|---|---|---|---|
| A- | 1524 mm (60 in.) | - | I- | 1930 mm (76 in.) | - |
| B- | - | - | J- | - | - |
| C- | - | - | K- | - | - |
| D- | 1626 mm (64 in.) | - | L- | 2032 mm (80 in.) | - |
| E- | - | 1727 mm (68 in.) | M- | - | 2134 mm (84 in.) |
| F- | - | - | N- | - | - |
| G- | - | - | O- | - | - |
| H- | - | 1829 mm (72 in.) | P- | - | 2235 mm (88 in.) |
