Rear Wheel Adjusting -Steel

causym CAUTION: Avoid personal injury. Never operate the engine with transmission in gear and rear wheels off the ground. MFWD wheels could pull rear wheels off support. MFWD must be disengaged and transmission in NEUTRAL to rotate axle.

1. Raise tractor on level ground and turn wheel so rack on the axle is upward.

2. Loosen hub center bolts (A) against retaining nuts.

3. Remove hub sleeve bolts (B). Use hub sleeve bolts in jack screw holes (C) to loosen sleeves. Tighten screws up to 500-600 N·m (370-440 lb-ft) if necessary.

NOTE: Strike end of axle with a heavy hammer and use penetrating oil if sleeves are difficult to break loose.

4. Remove screws from jack screw holes (D). Install JDG667A Wheel Adjusting Tool (available from your John Deere Dealer), using bolts removed from jack screw holes. Move wheel to desired position. Observe tread width limitations.

5. Remove adjusting tool and jack screws.

causym CAUTION: Never operate tractor with a loose rim, wheel, or hub.

IMPORTANT: Keep the face of hub sleeves even to prevent hub breakage or bolt loosening.

6. Tighten hub sleeve bolts to 204 N·m (150 lb-ft) beginning with the center bolts, then crisscrossing the other bolts. Retighten bolts to 410 N·m (300 lb-ft) using the same sequence.

Drive tractor a minimum of 100 meters (100 yd) and tighten bolts to 600 N·m (445 lb-ft).

Recheck all bolts after working 3 HOURS and again after 10 HOURS .

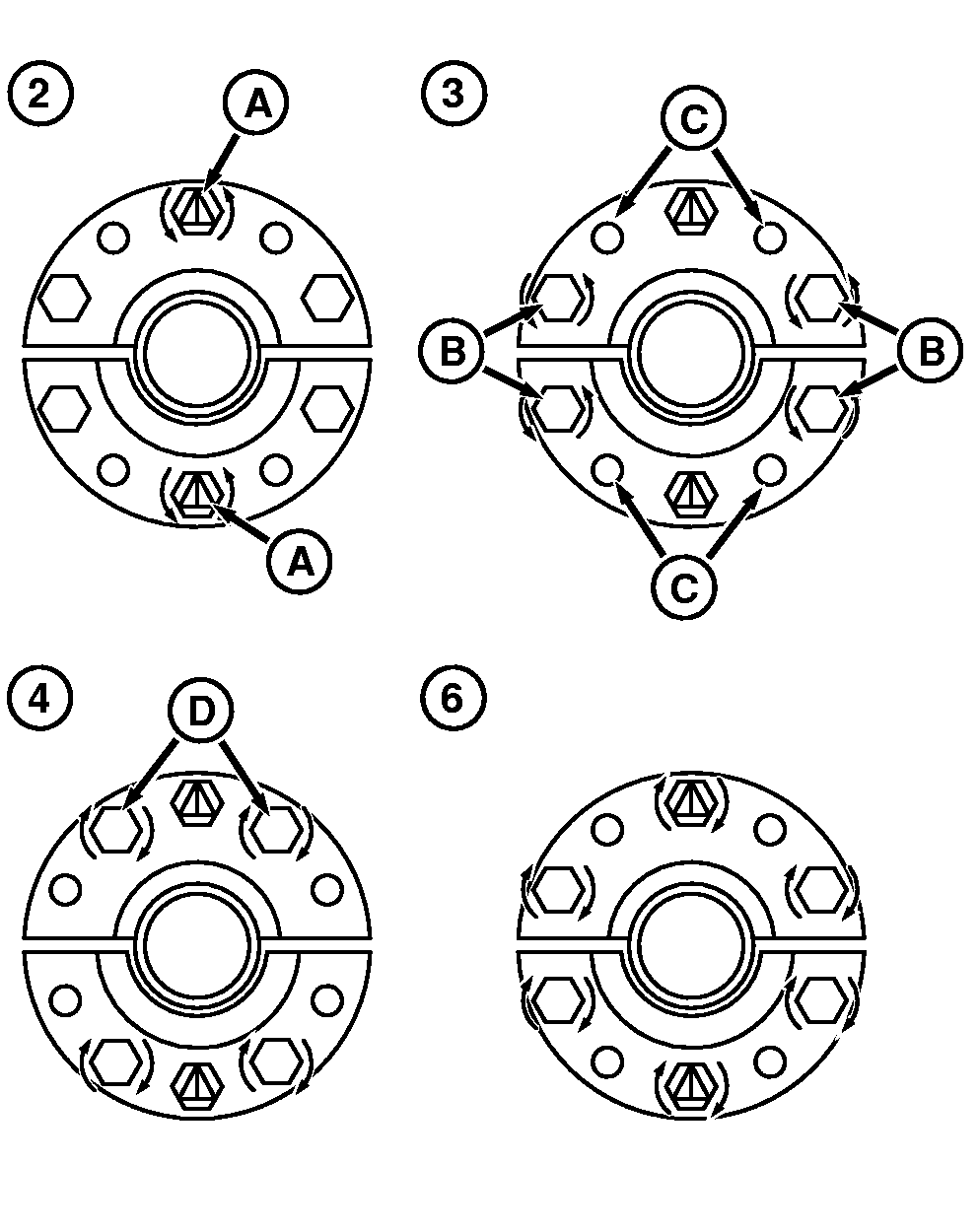

RXA0063068
RW21374


A-Hub Center Bolts
B-Hub Sleeve Bolts
C-Jack Screw Holes
D-Jack Screw Holes
