Rear Dual Wheel Guidelines

CAUTION: Avoid personal injury or death. Never operate the engine with transmission in gear and rear wheels off the ground. Front wheels on tractors with MFWD could pull rear wheels off support.

Make sure MFWD is disengaged and transmission gear shift lever is in neutral position (N) to rotate axle by hand.

IMPORTANT: Check minimum spacing (A) between tire centers, as shown in GENERAL WHEEL, TIRE AND TREAD SETTING GUIDELINES. Dual wheels can not be used with 2438 mm (96 in.) axles.

Tighten retaining bolts (B), special sleeve bolts (D), and rim flange bolts (F).

NOTE: When removing a wheel for single wheel operation, always remove steel disk wheel (C) and operate tractor on cast wheel (E) with flanged rim.

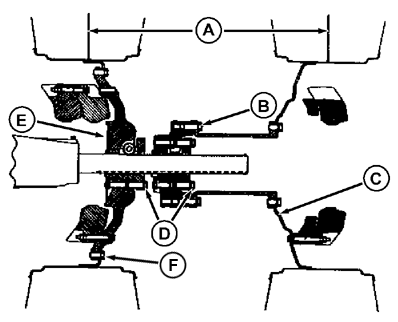

A-Minimum Spacing
B-Retaining Bolts
C-Steel Disk Wheel
D-Sleeve Bolts
E-Cast Wheel
F-Rim Flange Bolts
