Data Entry Mode

Press a switch from the touch pad (A), to preset or change values for:

AREA, Percentage SLIP ALARM, DISTANCE, IMPLEMENT WIDTH, IMPLEMENT SELECTOR, TIME SINCE LAST SERVICE, SERVICE INTERVAL, BACKLIGHT BRIGHTNESS.

Press (A) to change the numeric value. Display field will flash.

Input a numeric value using touch pad, then press (A) to save.

NOTE: Touch switches have a numeral located on the lower right-hand portion of the switch for data entry.

Press (B) to restore previous value before pressing (A).

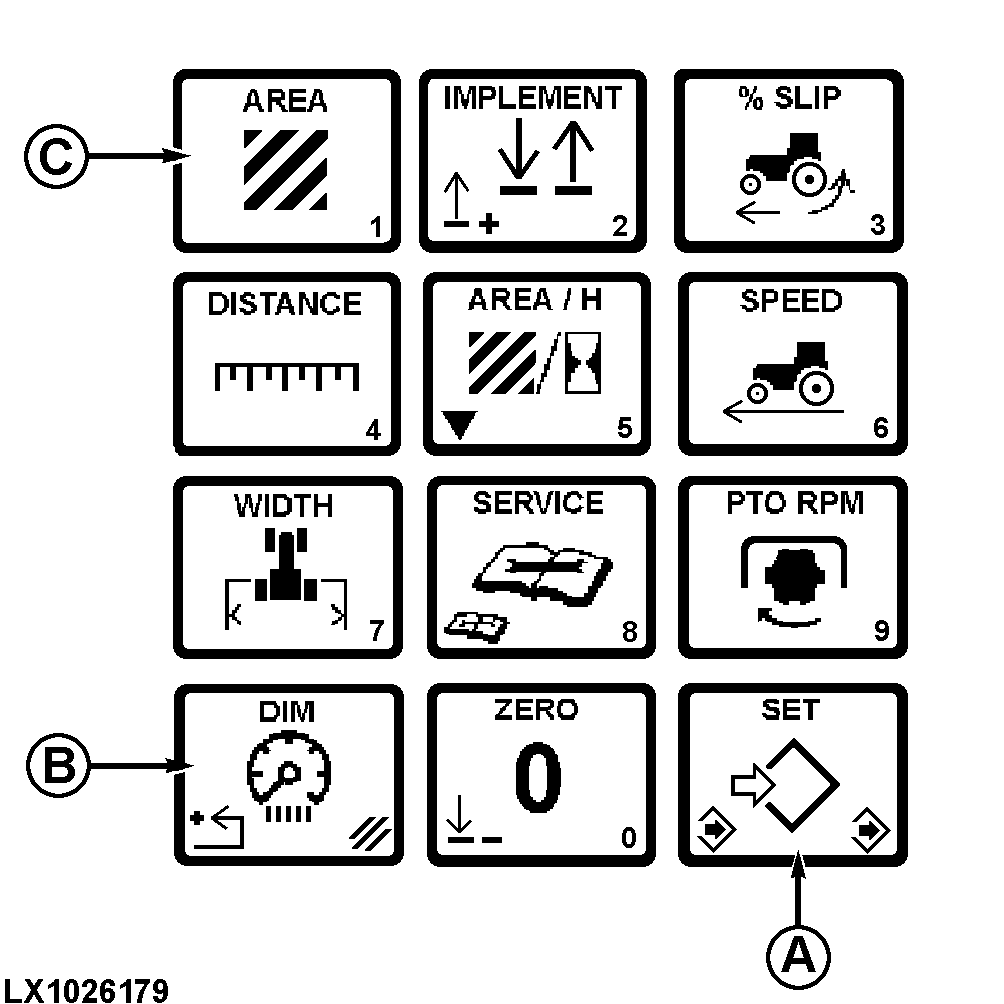

A-Set/Save
B-Cancel
C-Area Switch
