Backlight Brightness

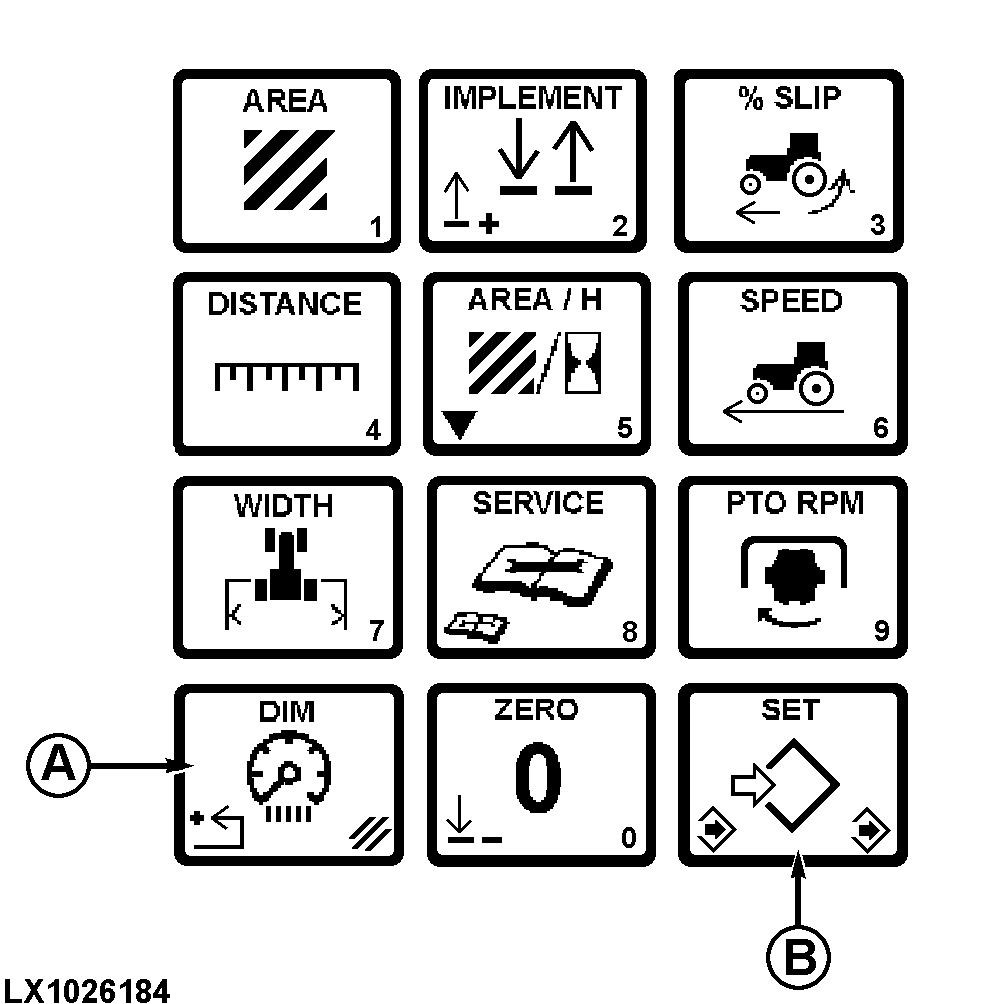

The "DIM" switch (A) can adjust the backlight intensity of performance monitor.

Press (A) to display system backlight intensity for displays in the cab.

NOTE: Backlight intensity will remain at maximum brightness with headlights in the OFF position.

Headlight switch must be in the "ON" position to make adjustments.

Press (B) to input numerical value (0 - 255).

Press (B) again to save.

A-DIM Switch
B-Set Switch

LX005375 -19-01OCT93-1/1
