Super Comfort Seat

To adjust the seat upward, raise it until it clicks into place (maximum of 3 detent positions). To adjust downward, raise the seat to the stop position, then lower it.

IMPORTANT: Before turning the seat, always switch off the engine. This prevents the tractor or implements from moving if any of the controls are accidentally moved.

If seat is equipped with swivel (optional equipment), this is operated by means of lever (G) as follows:

Lift lever up. Seat turns 200° to the left and 20° to the right. Seat locks at 10° intervals.

As a further option, seat may be equipped with same type of swivel described at "Air Comfort Seat".

To lower armrest through 30°, press armrest tilt adjuster (E) into armrest.

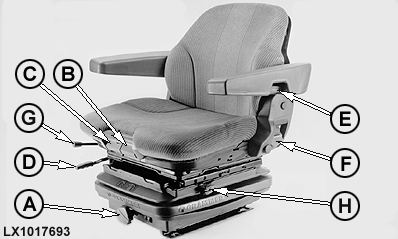

A-Operator's Weight Adjustment Knob
B-Tilt Adjustment Lever¹
C-Cushion Adjustment Lever¹
D-Horizontal Adjustment Lever
E-Armrest Tilt Adjustment
F-Backrest Tilt Adjustment
G-Swivel Adjustment Lever¹
H-Fore/Aft Adjustment Lever¹

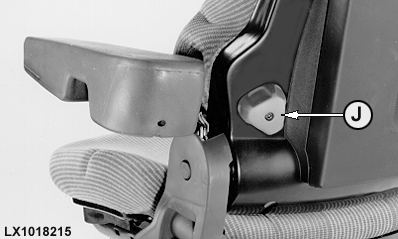

J-Lumbar Support Adjustment Knob

LX,OMKAB011272 -19-01SEP99-1/1
