Center Link Positions - Category III Hitch

The center link in Category III hitch can be attached to the tractor in either one of two positions.

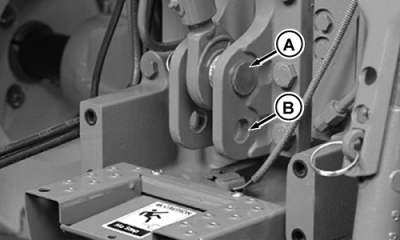

Attach center link to upper hole (A) in bracket when using Category 3 or 3N implements.

Attach center link to lower hole (B) for Category 2 implements.

A-Higher Position
B-Lower Position

LX,OREG000327 -19-01DEC95-1/1
